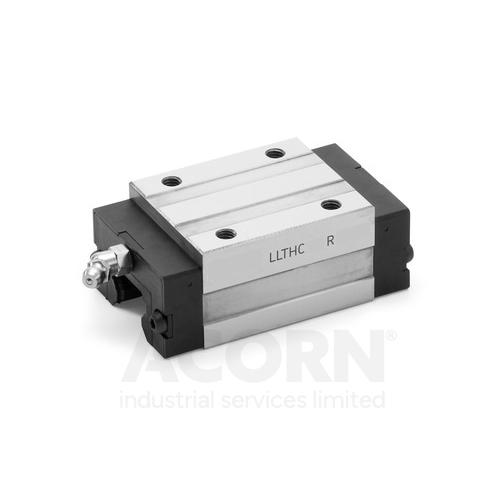

LLTHC 25 RT0P5, Ewellix, Slim-line Linear Slide, standard length, extended height

The profiled rail guides of the LLT series from Ewellix ensure a uniform load capacity in all main load directions. They are equipped with 4 rows of ball-bearings at right angles. Thanks to the X arrangement with rails and carriages (block), larger differences in height can also be made up. This superior design ensures reliable and friction-free operation of the LM system and increases rigidity to head loads. The LM blocks can be replaced with the same rail size, simplifying maintenance and installation. Different rails, LM blocks and accessories ensure a wide range of applications. This series is suitable for the following applications, for example: Conveying technology, plastic injection moulding, woodworking, printing and packaging industry and medical technology.

Specification
