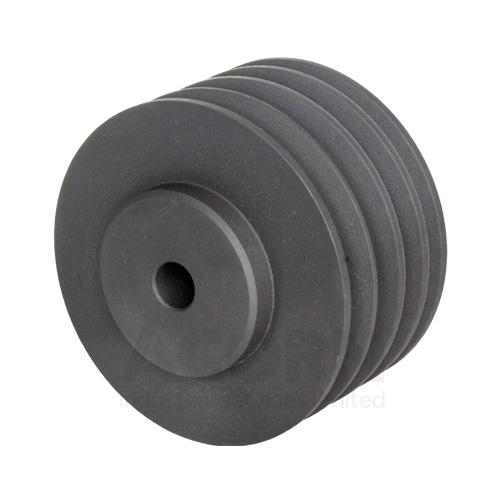

SPB 90/4, Neutral, V-Pulley

Cast iron, V-Pulley, 4 Groove, Pilot bore

Brand Neutral
Mfr Part No. SPB 90/4
Acorn Code 090SPB4-PB-NEUTRAL
HS Code 8483 50 80 90
COO China (CN)

$26.29

+

Pilot bore v-pulleys offer the flexibility of custom boring to suit a specific application or shaft size.
Used for the high-speed transmission of power between drive shafts through V & Wedge Belts. Manufactured in cast iron to ISO 4183 standard and suitable for use with all Classical V & Wedge Belts, produced in accordance to ISO 4184.


Specification

Product Attributes
Manufacturer Product Code SPB 90/4
Basic Product Description V-Pulley
Pitch Circle Diameter (mm) 90
Outer Diameter (mm) 97
Outside Length La (mm) 82
Crown Width (mm) 2.9
Weight (Kg) 2.9
No. of Grooves 4 Groove
Bore Type Pilot bore
Section SPB
Ma-3 Material 3 Cast iron
