PNA30/52-XL, INA, Alignment needle roller bearing, with an inner ring
Metric, Bearing, Bearing steel, Inner ring included, EAN code: 4012802735949
$54.33
| Brand | INA |
|---|---|
| Mfr Part No. | PNA30/52-XL |
Metric, Bearing, Bearing steel, Inner ring included, EAN code: 07316571156071
| Brand | SKF |
|---|---|
| Mfr Part No. | PNA 30/52 |
| Acorn Code | PNA30/52-SKF |
| HS Code | 8482 40 00 00 |
| COO | Slovakia (SK) |

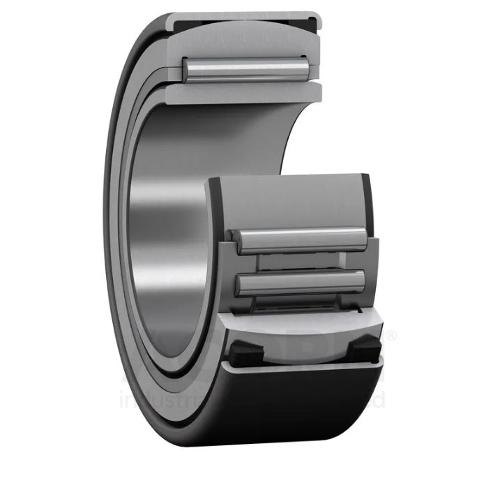

Alignment needle roller bearings are self-aligning and offer a compact solution in applications where less space is available. Owing to their large number of rollers, they have a high load carrying capacity. Their internal design, where a convex outer ring meets two concave seating rings encased in a drawn sleeve, enables the bearings to compensate for initial errors of alignment. Bearings with an inner ring are used for applications where the shaft cannot be hardened and ground.
• High radial load carrying capacity
• Accommodate static initial misalignment
• Low cross-sectional height
| Manufacturer Product Code | PNA 30/52 |
|---|---|
| Basic Product Description | Alignment needle roller bearing, with an inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 52 |
| Width (mm) | 20 |
| Weight (Kg) | 0.18 |
| Sealing | Without |
| Accuracy | Normal |
| Bearing Material | Bearing steel |
| Housing Type | Inner ring included |
| Basic dynamic load rating | 24.6 kN |
| Basic static load rating | 45 kN |
| Limiting speed | 13000 r/min |
| Reference speed | 11000 r/min |
| EAN code | 07316571156071 |
Metric, Bearing, Bearing steel, Inner ring included, EAN code: 4012802735949
| Brand | INA |
|---|---|
| Mfr Part No. | PNA30/52-XL |
