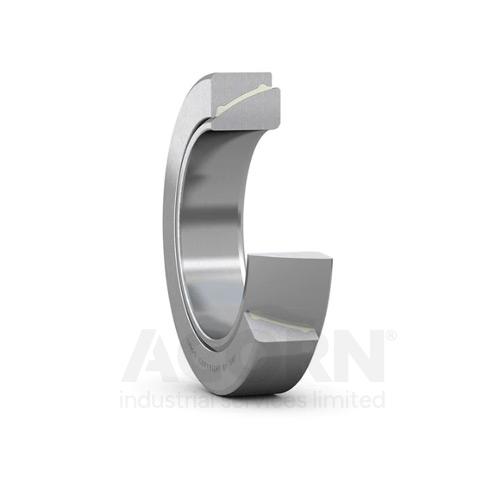

GAC 70 F, SKF, Angular contact spherical plain bearing

Metric, Bearing, Steel/PTFE FRP, Maintenance free, EAN code: 07316577106681

SKF
Brand SKF
Mfr Part No. GAC 70 F
Acorn Code GAC70F-SKF
HS Code 8482 30 00 00
COO Germany (DE)

Angular contact spherical plain bearings are designed to accommodate combined radial and axial loads. Single bearings can accommodate axial loads acting in one direction. This specific design includes a steel/PTFE FRP sliding contact surface combination that is maintenance-free. However, relubrication, which can be applied from both sides, can extend bearing service life.

• Designed for combined radial and axial loads
• Separable inner and outer rings enable easier mounting
• Long service life and maintenance-free
• Relatively insensitive to contaminants
• Low coefficient of friction

Specification

Product Attributes
Manufacturer Product Code GAC 70 F
Basic Product Description Angular contact spherical plain bearing
Measurement Metric
UOM Each
Bore diameter (mm) 70
Outside diameter (mm) 110
Width, inner ring (mm) 25
Width, outer ring (mm) 23
Weight (Kg) 1.043
Lubrication Maintenance free
Seals Without
Relubrication feature Without
Features Multi-groove system
Bearing Material Steel/PTFE FRP
Housing Material Bearing steel
Basic dynamic load rating 98 kN
Basic static load rating 156 kN
EAN code 07316577106681
