Electro mechanical, High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations, Single point automatic lubricator, EAN code: 07316575835484
| Brand | SKF |
|---|---|
| Mfr Part No. | TLSD 125/EM2 |
| Acorn Code | TLSD125/EM2-SKF |
| HS Code | 2710 12 15 00 |
| COO | Portugal (PT) |

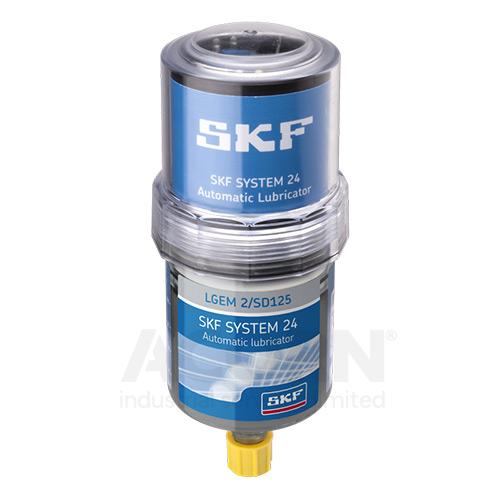

The SKF SYSTEM 24 TLSD 125/EM2 is an electro-mechanical single point automatic lubricator. It is filled with 125 ml of SKF LGEM 2 high viscosity bearing grease with solid lubricants particularly suitable for applications with heavy loads, heavy vibrations and slow rotations.Key benefits of using an automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | TLSD 125/EM2 |
|---|---|
| Basic Product Description | Automatic lubricator with 125 ml LGEM 2 grease |
| Product type | Single point automatic lubricator |
| Lubricant Group | LGEM 2 |
| Weight (Kg) | 0.66 |
| Lubricant description | High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations |
| Drive Mechanism | Electro mechanical |
| Mounting Type | Single point |
| Connection thread | G 1/4 |
| Ambient temperature range | 0 to 50 °C; -10 to +50 °C with TLSD 1-BATC |
| Lubricant Type | Grease |
| Battery packs | TLSD 1-BAT: 4.5V, 2.7 Ah, Alkaline manganese |
| Maximum feed line length | up to 3 m |
| Maximum operating pressure | 5 bar |
| Lowest grease purge | 0.3 ml per day |
| Highest grease purge | 4.1 ml per day |
| Environmental protection | IP 65 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Capacity | 125 ml |
| Features | Flexible dispense rate from 1 to 12 months Maximum discharge pressure of 5 bar over the whole dispensing period Lubricator's status visible with red/yellow/green LED Compact size permits installation in restrictive areas Supplied with support flange for enhanced sturdiness Suitable for both direct and remote installation |
