Metric, Bearing unit, Composite (Blue), Seal and flinger on both sides, Set screw locking, Food grade grease
| Brand | SKF |
|---|---|
| Mfr Part No. | F3BBC 30M-TPSS |
| Acorn Code | F3BBC30M-TPSS-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

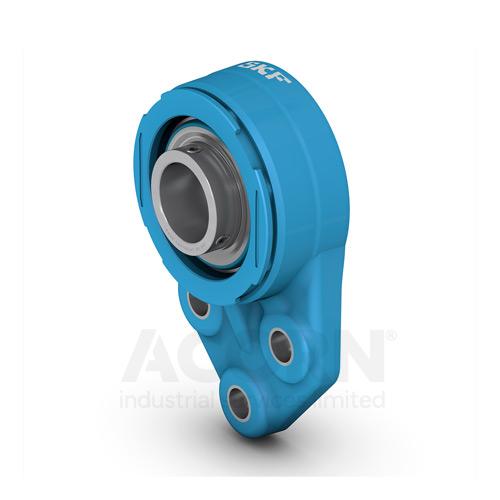

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Chemical resistant
• Lubricated for life with a non-toxic food grade grease
• Lightweight
• Strong
| Manufacturer Product Code | F3BBC 30M-TPSS |
|---|---|
| Basic Product Description | SKF Foodline - Corrosion resistant 3-bolt bracket flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| Width (mm) | 41.2 |
| Length (mm) | 82 |
| Height (mm) | 140 |
| Weight (Kg) | 0.47 |
| Lubrication | Food grade grease |
| Seals | Seal and flinger on both sides |
| Features | Contact, gutter |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| Bolt Hole Centres (mm) | 47.5 |
| Other | Optional end cover / Sold separately |
| Bearing Material | Stainless steel |
| Housing Material | Composite (Blue) |
| Bearing/Insert reference | YAR 206-2LPW/SS |
| Housing reference | F3BBC 506 |
| Dynamic load | 16.3 |
| Static load | 11.2 |
| Max Speed | 3800 |
