KT 101310 C3, IKO, Needle Roller & Cage Assembly
Bearing, Steel, C3 Clearance
$3.26
| Brand | IKO |
|---|---|
| Mfr Part No. | KT 101310 C3 |
Bearing, Polymide, Without, Normal Clearance (Cn)
| Brand | SKF |
|---|---|
| Mfr Part No. | K 10X13X10 TN |
| Acorn Code | K10X13X10TN-SKF |
| HS Code | 8482 40 00 00 |
| COO | Germany (DE) |

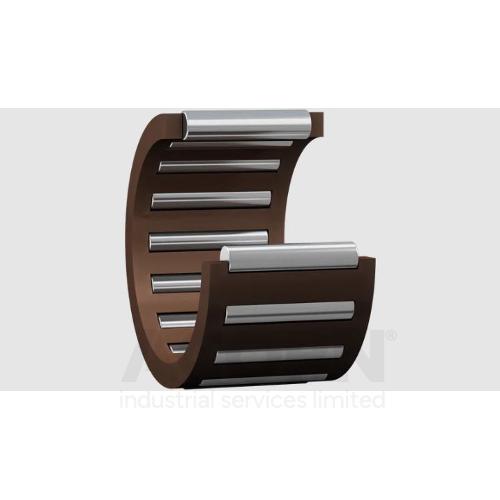

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.
• High radial load carrying capacity
• High stiffness
• High precision
• Lowest cross-sectional height among rolling bearings
• Accommodate axial displacement in both directions
| Manufacturer Product Code | K 10X13X10 TN |
|---|---|
| Basic Product Description | Single row needle roller and cage assembly |
| UOM | Each |
| id (mm) | 10 |
| od (mm) | 13 |
| Width (mm) | 10 |
| Weight (Kg) | 0.002 |
| Seals | Without |
| Clearance | Normal Clearance (Cn) |
| Accuracy | Normal |
| Cage material | Polymide |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 4.57 kN |
| Basic static load rating | 5.7 kN |
| Limiting speed | 32000 r/min |
| Reference speed | 28000 r/min |
Bearing, Steel, C3 Clearance
| Brand | IKO |
|---|---|
| Mfr Part No. | KT 101310 C3 |
