Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Adapter sleeve, EAN code: 07316570420906
| Brand | SKF |
|---|---|
| Mfr Part No. | FYJ30KF |
| Acorn Code | FYJ30KF-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

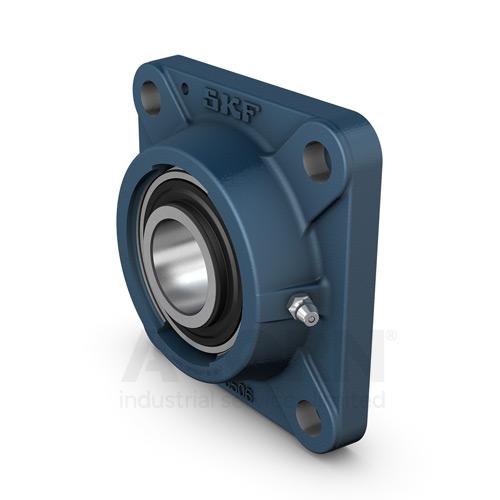

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, locked to the shaft with an adapter sleeve, which enables the bearings to operate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement. The adapter sleeve is not included in the unit and should be ordered separately.
• Resist high levels of contamination
• Designed for high temperatures and speeds
• Accommodate relatively heavy loads
• Cost-effective
| Manufacturer Product Code | FYJ30KF |
|---|---|
| Basic Product Description | Y-Bearing Square 4-bolt flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 108 |
| Width (mm) | 31 |
| Weight (Kg) | 1.08 |
| Seals | Seal and flinger on both sides |
| Features | Adapter sleeve |
| Bore Type | Tapered bore |
| Bolt Hole Centres (mm) | 83 |
| Bearing Material | Bearing steel |
| Housing Material | Cast iron |
| Bearing/Insert | YSA206-2FK |
| Housing | FYJ506 |
| Dynamic load | 19.5 kN |
| Static load | 11.2 kN |
| Max Speed | 6300 r/min |
| EAN Code: | 07316570420906 |
