Tachometer, EAN code: 7316579619905
| Brand | SKF |
|---|---|
| Mfr Part No. | TKRT 31 |
| Acorn Code | TKRT31-SKF |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |

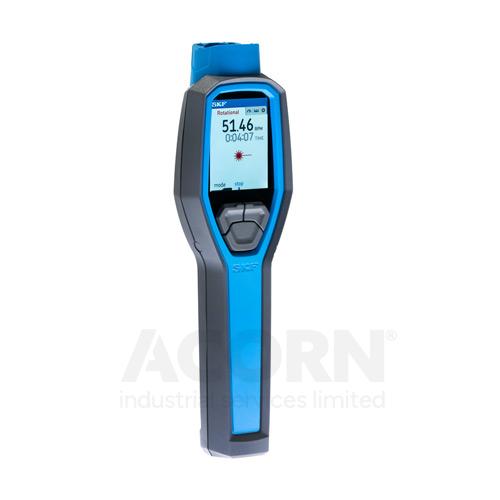

The TKRT 31 is an advanced, multi-functional digital tachometer. The large colour screen provides easy reading. Via the easy-button-control the user can quickly scroll through the menu and start operating. The TKRT uses laser or contact measurement to determine rotational speed, linear speed and distances. The device enables easy, quick measurement at a safe distance from rotational machinery. It has a wide speed range and a number of measurement modes. The TKRT 31 is supplied with a full set of contact adaptors.
• Large colour-backlit TFT display
• Measures linear and rotational speed, and distances
• Includes full set of contact adaptors
• Large angular range simplifies measurement, where straight-line access is difficult
• Supplied in a handy toolcase for easy storage
| Manufacturer Product Code | TKRT 31 |
|---|---|
| Basic Product Description | Advanced, multi-functional digital tachometer |
| UOM | Each |
| Width (mm) | 260 |
| Depth (mm) | 85 |
| Height (mm) | 180 |
| Weight (Kg) | 0.27 |
| Display | Multi-line backlight TFT |
| Low battery indicator | Yes |
| Auto switch off | Yes |
| Measurement - Optical modes | rpm and Hz |
| Measurement - Contact modes | rpm and Hz, meters, feet, inch, per min and per sec |
| Measurement - Count modes | Distance mode |
| Measurement - Speed capture feature | Maximum, Minimum or Average rate |
| Feature - Linear speed | meters, feet, inch, per min and per sec |
| Optical Measurement - Rotational Speed range | 1 to 99 999 r/min |
| Optical Measurement - Accuracy | ±0.01% of reading ±1 digit |
| Optical Measurement - Measuring distance | 25 to 1 200 mm (1 to 47 in) |
| Optical Measurement - Angle of operation | ±30° |
| Optical Measurement - Laser sensor | Built-in class 2 laser |
| Contact Measurement - Rotational speed range | Max. 20 000 rpm for 36 000 sec |
| IP Rating | IP 40 |
| Power Source | 2 x AA batteries, rechargeable can be used |
| Contact Measurement - Accuracy | ±0.1% of reading ±1 digit (>120 rpm or "high accuracy") "low speed accuracy" at < 120 rpm |
| Operation time | 20 |
| Product type | Tachometer |
| EAN code | 7316579619905 |
