PST30 CR, RHP, Silver-Lube take-up bearing unit
Metric, Bearing unit, Composite (White)
Brand | RHP |
---|---|
Mfr Part No. | PST30 CR |
Metric, Bearing unit, Composite (White), Seal and flinger on both sides, Set screw locking, EAN code: 07316574959006
Brand | SKF |
---|---|
Mfr Part No. | TUWK 30 LTHR |
Acorn Code | TUWK30LTHR-SKF |
HS Code | 8483 20 00 00 |
COO | Italy (IT) |

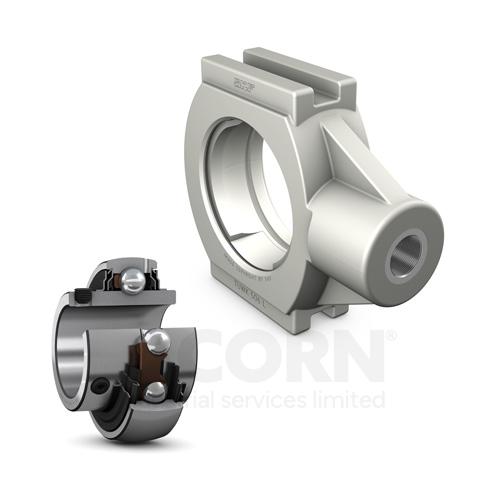

Take-up ball bearing units for SKF Food Line, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, which makes it easy to mount.
• Strong, yet lightweight
• Chemically resistant
• Designed for an alternating rotation
• Well suited to follow the highest food safety standards
• Reliable in wet environments
Manufacturer Product Code | TUWK 30 LTHR |
---|---|
Basic Product Description | Y Bearing Take-up bearing unit |
Measurement | Metric |
UOM | Each |
id (mm) | 30 |
Housing overall width | 34 |
Weight (Kg) | 0.61 |
Seals | Seal and flinger on both sides |
Features | Set screw locking |
Bore Type | Cylindrical |
Bearing Material | Stainless steel |
Housing Material | Composite (White) |
Bearing/Insert reference | YAR206-2RFGR/HV |
Housing reference | TUWK506L |
Basic dynamic load rating | 16.3 kN |
Basic static load rating | 11.2 kN |
Limiting speed | 3800 r/min |
EAN code | 07316574959006 |
Metric, Bearing unit, Composite (White)
Brand | RHP |
---|---|
Mfr Part No. | PST30 CR |
Metric, Bearing unit, Composite (White)
Brand | FSB |
---|---|
Mfr Part No. | TPL 206 |
Metric, Bearing unit, Composite (Blue), Seal on both sides and flinger on one side, Set screw locking, Food Grade Grease, EAN code: 07316577829092
Brand | SKF |
---|---|
Mfr Part No. | WSTUC 30M-CPSS-DFH |
Metric, Bearing unit, Composite (Blue), Seal and flinger on both sides, Set screw locking, Food Grade Grease, EAN code: 07316577831040
Brand | SKF |
---|---|
Mfr Part No. | WSTUC 30M-TPSS |
Metric, Bearing unit, Composite (Blue), Seal and flinger on both sides, Set screw locking, Food Grade Grease, EAN code: 07316577847607
Brand | SKF |
---|---|
Mfr Part No. | WSTUC 30M-TPZM |
