Metric, Bearing unit, Composite (Blue), Seal and flinger on both sides, Set screw locking, Food Grade Grease, EAN code: 07316577859228
| Brand | SKF |
|---|---|
| Mfr Part No. | WSTUC 25M-TPZM |
| Acorn Code | WSTUC25M-TPZM-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

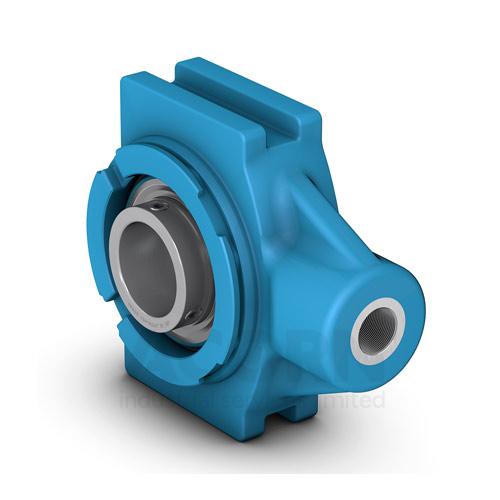

Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.
• Strong, yet lightweight
• Chemically resistant
• Designed for an alternating rotation
• Well suited to follow the highest food safety standards
• Reliable in wet environments
| Manufacturer Product Code | WSTUC 25M-TPZM |
|---|---|
| Basic Product Description | Foodline - Corrosion resistant Take-up unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 25 |
| od (mm) | 100 |
| Housing overall width | 33.5 |
| Weight (Kg) | 0.32 |
| Lubrication | Food Grade Grease |
| Seals | Seal and flinger on both sides |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| Bearing Material | Bearing steel |
| Housing Material | Composite (Blue) |
| Basic dynamic load rating | 14 kN |
| Basic static load rating | 7.8 kN |
| Limiting speed | 4300 r/min |
| EAN code | 07316577859228 |
Metric, Bearing unit, Composite (Blue), Seal on both sides and flinger on one side, Set screw locking, Food Grade Grease, EAN code: 07316577858528
| Brand | SKF |
|---|---|
| Mfr Part No. | WSTUC 25M-CPSS-DFH |
Metric, Bearing unit, Composite (Blue), Seal and flinger on both sides, Set screw locking, Food Grade Grease, EAN code: 07316577858788
| Brand | SKF |
|---|---|
| Mfr Part No. | WSTUC 25M-TPSS |
