BS, Steel, 57, 1, 25.4
| Brand | SKF |
|---|---|
| Mfr Part No. | PHS 16B-3TB57 |
| Acorn Code | 16B-3TB57-SKF |
| HS Code | 8483 90 20 90 |
| COO | China (CN) |

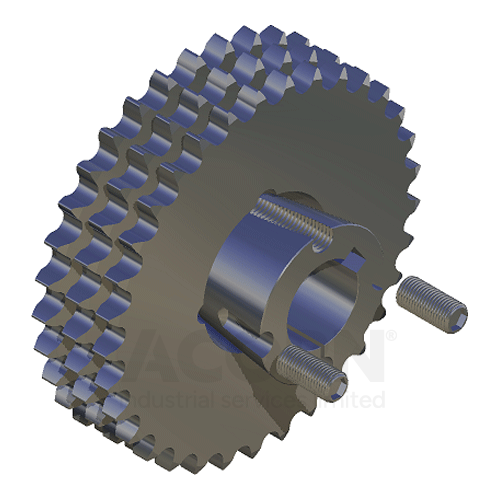

Tapered bore sprockets, incorporating an appropriate tapered bush, offer a convenient, quick and easy installation.
Used for the transmission of power between drive shafts through roller chains. Manufactured in steel or cast iron in a range of tooth pitches, designed for use with respective pitches of roller chain.
| Manufacturer Product Code | PHS 16B-3TB57 |
|---|---|
| Basic Product Description | Taper Lock Sprocket |
| Standard BS/ANSI | BS |
| UOM | Each |
| Tooth Pitch Inch | 1 |
| Tooth Pitch mm | 25.4 |
| No. Teeth (mm) | 57 |
| Pitch Diameter (mm) | 461.07 |
| Tapered Bush to Suit (mm) | 3020 |
| Hub Size (mm) | 102 |
| Width (mm) | 216 |
| Weight (Kg) | 39.5 |
| Bore Type | Taper Bore |
| No. Teeth Rows | Triplex - 3 Row |
| Material | Steel |
