NNU4920-S-K-M-SP, FAG, Precision Bearing, Double row cylindrical roller bearing

Metric, Class SP (SP), Bearing, Brass Cage, S = Lubrication holes and lubrication groove in outer ring, C1

ACORN is an FAG Authorised Distributor
Brand FAG
Mfr Part No. NNU4920-S-K-M-SP
Acorn Code NNU4920-S-K-M-SP-FAG
HS Code 8482 10 90 30
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 XXX

$645.61

− +

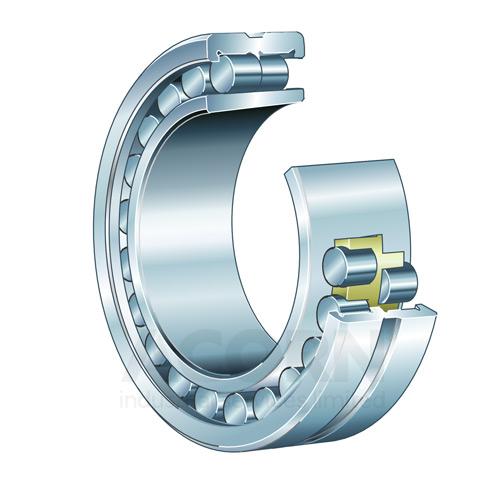

Super precision cylindrical roller bearings NNU49..-S-K-M-SP, non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage

Specification

Product Attributes
Manufacturer Product Code NNU4920-S-K-M-SP
Basic Product Description Double row cylindrical roller bearing
Measurement Metric
UOM Each
id (mm) 100
od (mm) 140
Width (mm) 40
Weight (Kg) 1.855
Features S = Lubrication holes and lubrication groove in outer ring
Bore Type Tapered, taper 1:12
Clearance C1
Tolerance group Class SP (SP)
Cage Material Brass Cage
Basic dynamic load rating 128000
Basic static load rating 255000
Limiting speed 5700
EAN-Code 4012801231916
