NSF H1 approved oil, Food grade, NSF H1 approved oil, Single point automatic lubricator, EAN code: 07316579651936

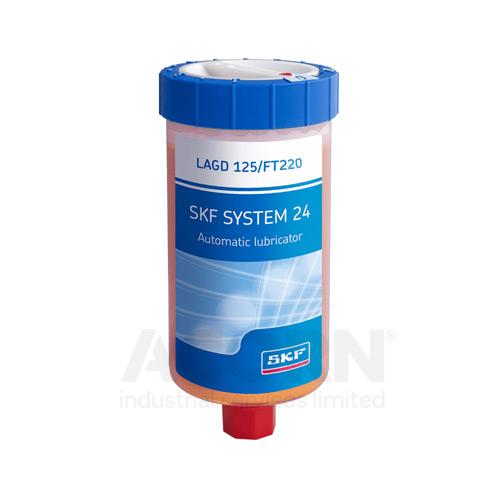

| Manufacturer Product Code | LAGD 125/FT220 |
|---|---|
| Basic Product Description | Automatic lubricator with LFFT 220 food grade high temperature chain oil, 125ml |
| Product type | Single point automatic lubricator |
| Lubricant Group | LFFT 220 |
| Weight (Kg) | 2.04 |
| Lubricant description | Food grade, NSF H1 approved oil |
| Mounting Type | Single point |
| Connection thread | R 1/4 |
| Special features | non-return valve included |
| Intrinsically safe approval | II 1 G Ex ia IIC T6 Ga; II 1 D Ex ia IIIC T85°C Da; I M1 Ex ia I Ma |
| Other features | NSF H1 approved oil |
| Ambient temperature range | -20 to +60 °C (-5 to +140 °F) |
| Lubricant Type | Oil |
| Maximum feed line length | 1500 mm |
| Maximum operating pressure | 5 bar |
| Environmental protection | IP 68 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Capacity | 125 ml |
| Features | • Flexible dispense rate from 1 to 12 months • Intrinsic safety rating: ATEX approved for zone 0 • Transparent lubricant container allows visual inspection of dispense rate • Compact size, permits installation in restrictive areas |
