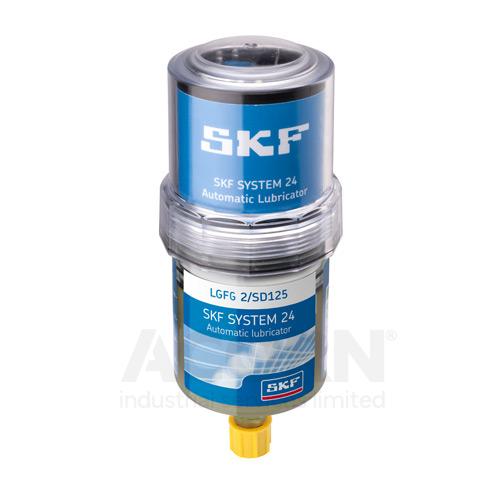

TLSD 125/FG2, SKF, Automatic lubricator with 125 ml LGFG 2 grease

Electro mechanical, NSF ISO 21469 registered as well as Halal and Kosher certified, General purpose food grade grease, Single point automatic lubricator, EAN code: 07316579988407

SKF Authorised distributor logo
Brand SKF
Mfr Part No. TLSD 125/FG2
Acorn Code TLSD125/FG2-SKF
HS Code 2710 12 15 00
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

Portugal (PT)

$104.07

+

Specification

Product Attributes
Manufacturer Product Code TLSD 125/FG2
Basic Product Description Automatic lubricator with 125 ml LGFG 2 grease
Product type Single point automatic lubricator
Lubricant Group LGFG 2
Weight (Kg) 0.63
Lubricant description General purpose food grade grease
Drive Mechanism Electro mechanical
Mounting Type Single point
Connection thread G 1/4
Other features NSF ISO 21469 registered as well as Halal and Kosher certified
Lubricant Type Grease
Battery packs TLSD 1-BAT: 4.5V, 2.7 Ah, Alkaline manganese
Maximum feed line length up to 3 m
Maximum operating pressure 5 bar
Lowest grease purge 0.3 ml per day
Highest grease purge 4.1 ml per day
Environmental protection IP 65
Nominal emptying time Adjustable; 1-12 months
No. Lubrication Points 1
Capacity 125 ml
Features • Flexible dispense rate from 1 to 12 months
• Maximum discharge pressure of 5 bar over the whole dispensing period
• Lubricator's status visible with red/yellow/green LED
• Compact size permits installation in restrictive areas
• Supplied with support flange for enhanced sturdiness
• Suitable for both direct and remote installation
