Large, bearing heater, 200-230V/50-60Hz, 10.0 kVA, EAN code: 07316573959939

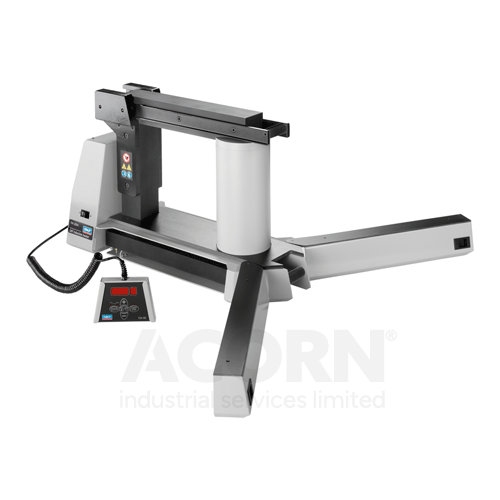

The SKF TIH 220M is a large bearing heater and is designed for the hot mounting of bearings. This versatile heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater has a convenient sliding yoke and is supplied with an additional smaller yoke. The TIH 220M can heat bearings with a minimum bore diameter of 60 mm and larger bearings with a maximum weight of 300 kg.
• Supplied with standard sliding yoke and one smaller yoke located in an integrated storage compartment
• Easy and safe to use with automatic temperature control or time controlled heating
• Automatic demagnetization reduces risk of bearing contamination
• Suitable for non-bearing applications for workpieces weighing up to 150 kg
• Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
| Manufacturer Product Code | TIH 220M/LV |
|---|---|
| Basic Product Description | bearing heater TIH 220M (230V version) |
| UOM | Each |
| Width (mm) | 750 |
| Length (mm) | 290 |
| Height (mm) | 440 |
| Total weight (incl. yokes) | 86 |
| Heater Type | Large |
| Temperature Range | 20°C to 250°C (68°F to 482°F) |
| Power Supply | 200-230V/50-60Hz |
| Maximum Power Consumption | 10.0 kVA |
| Demagnetisation | <2 A/cm |
| Voltage and frequency | 200-240 V/50-60Hz |
| Voltage Classification | LV |
| Coil Diameter | 140mm |
| Standard yokes (included) for minimal bore diameter | 1 x 100mm, 1 x 60mm |
| Optional yokes for minimal bore diameter | 40 mm |
| Max. Bearing Weight (Kg) | 300 Kg |
| Bore Diameter Range (mm) | 60-600mm |
| Operating Area (w) x (h) | 250 x 255mm |
| EAN code | 07316573959939 |
