Brass cage, W502 = W22 + W33 Combined, C4 Clearance, EAN code: 07316576601859

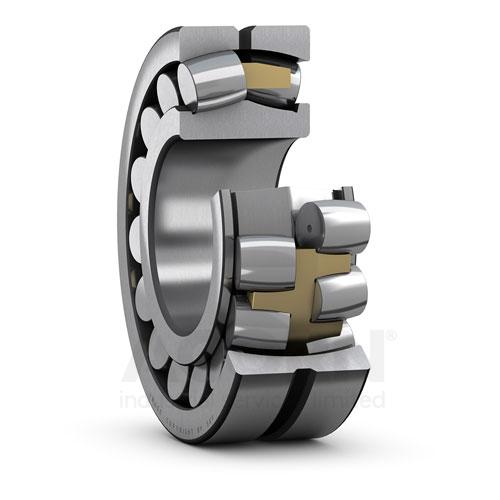

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
• Accommodate misalignment
• High load carrying capacity
• Relubrication features
• Low friction and long service life
• Increased wear resistance
| Manufacturer Product Code | 452319 M2/W502 |
|---|---|
| Basic Product Description | Spherical roller bearing with relubrication features |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 95 |
| od (mm) | 200 |
| Width (mm) | 67 |
| Weight (Kg) | 10 |
| Sealing | Open (No seal) |
| Features | Lubrication holes and groove in outer ring |
| Bore Type | Parallel bore |
| Clearance | C4 Clearance |
| Cage design | Machined brass |
| Accuracy | Special: C10 |
| Other Variations | W502 = W22 + W33 Combined |
| Cage material | Brass cage |
| Basic dynamic load rating | 518 kN |
| Basic static load rating | 670 kN |
| Limiting speed | 3400 r/min |
| Reference speed | 2400 r/min |
| EAN-Code | 07316576601859 |
