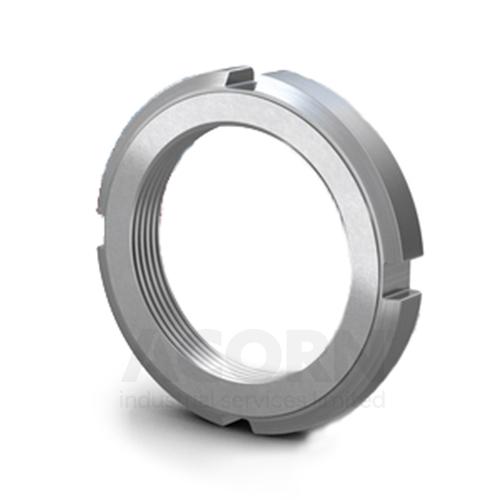

N 08, SKF, N inch lock nut, requiring a keyway

Nut, Steel, EAN code: 7316571280714

SKF Authorised distributor logo
Brand SKF
Mfr Part No. N 08
Acorn Code N08-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

United States (US)

$9.25

+
In stock

N lock nuts are used to locate bearings onto a shaft or adapter sleeve. They have four, equally spaced slots around their circumference to accommodate a hook or impact spanner. Depending on size and series, the lock nuts are secured onto the shaft using either a W lock washer or a PL locking plate. The locking device engages a keyway in the shaft or adapter sleeve thread. N lock nuts can be reused, provided they are not damaged.

• Simple, stable and reliable fastening element
• Easy to install and remove
• Reusable with a new locking device
• Require a keyway in the shaft or adaptor sleeve thread

Specification

Product Attributes
ManufacturerProductCode N 08
Basic Product Description N inch lock nut, requiring a keyway
Measurement Imperial
UOM Each
id (mm) 39.7
od (mm) 57.277
Width (mm) 11.379
Weight (Kg) 0.105
Material Steel
Associated mounting tool (*not included) HN 8-9
EAN-Code 7316571280714
