Grease, > 220 °C, 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.), 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change, 2 max. at 150 °C, EAN code: 7316577745828

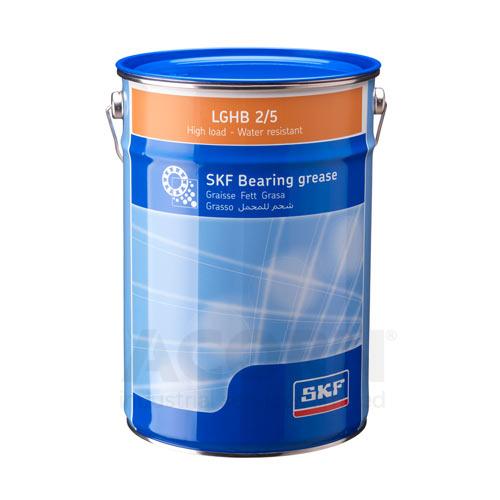

SKF LGHB 2 is a high viscosity, mineral oil based grease, using calcium sulphonate complex thickener. Formulated to withstand high temperatures and extreme loads, it is suitable for a wide range of applications, especially in the cement, mining and metals segments.
Features & benefits:
• Excellent load capacity, anti-oxidation and corrosion protection even with large water ingress
• Withstands peak temperatures of 200 °C (390 °F)
Typical applications:
• Steel on steel plain bearings
• Pulp and paper making machines
• Asphalt vibrating screens
• Continuous casting machines
• Sealed spherical roller bearings operating up to 150 °C (300 °F)
• Work roll bearings in steel industry
• Mast rollers of fork lift trucks
| Manufacturer Product Code | LGHB 2/5 |
|---|---|
| Basic Product Description | High viscosity, high temperature grease, 5 kg can |
| Size (Per Unit) | 5 Kg |
| UOM | Each |
| Base Oil Viscosity cSt @ 40°C | 400 |
| Weight (Kg) | 5 |
| Dropping point | > 220 °C |
| Penetration DIN ISO 2137 | 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.) |
| Roll stability ASTM D1831 | 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change |
| Corrosion protection ISO 11007 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0 |
| Oil separation DIN 51 817 | 7 days at 60 °C: 1-3 % |
| Copper corrosion DIN 51811 | 2 max. at 150 °C |
| Rolling bearing grease life | ROF test, L50 life at 10000 r/min: > 1000 hrs at 130 °C |
| UN Code | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0 |
| EP performances DIN 51350 | Wear scar DIN 51350/5,1400N: 0.86 mm; 4-ball test, welding load DIN 51350/4: > 4000 N |
| Thickener | Complex calcium sulphonate |
| Base type | Mineral |
| Colour | Brown |
| Container | Can |
| Water resistence | 3 hours at 90 °C: 1 max. |
| Operating Time | -20°C |
| Ex-2 Features 2 | 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.) |
| Ex-3 Features 3 | 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change |
| Ex-4 Features 4 | Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0 |
| Series | 7 days at 60 °C: 1-3 % |
| Model | 2 max. at 150 °C |
| In-3 Internal Features 3 | ROF test, L50 life at 10000 r/min: > 1000 hrs at 130 °C |
| In-6 Internal Features 6 | Wear scar DIN 51350/5,1400N: 0.86 mm; 4-ball test, welding load DIN 51350/4: > 4000 N |
| Te-2 Laser Line Length | 3 hours at 90 °C: 1 max. |
| Lower Operating Temperature | -20°C |
| Upper Operating Temperature | +150°C |
| Basic Reference | Grease |
| EAN code | 7316577745828 |
