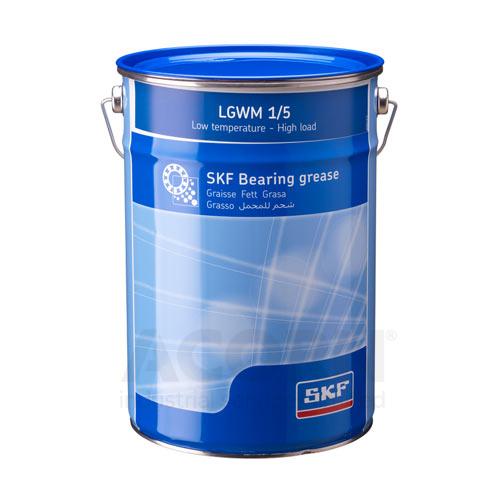

LGWM 1/5, SKF, Extreme Pressure (EP), low temperature grease, 5 kg can, 5 Kg Can

Grease, > 170 °C, 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max., 2 max. at 90 °C, EAN code: 7316570520750

SKF Authorised distributor logo
Brand SKF
Mfr Part No. LGWM 1/5
Acorn Code LGWM1/5-SKF
HS Code 2710 12 15 00
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 Sweden (SE)

$181.93

− +
In stock

SKF LGWM 1 is a low consistency mineral oil based grease, using a lithium soap and containing extreme pressure additives. It is extremely suitable for the lubrication of bearings operating under both radial and axial loads.

Features & benefits:
• Good oil film formation at low temperatures down to -30 °C (-20 °F)
• Good pumpability down to low temperatures
• Good corrosion protection
• Good water resistance

Typical applications:
• Wind turbine main shafts
• Screw conveyors
• Centralised lubrication systems
• Spherical roller thrust bearing applications

Specification

Product Attributes
Manufacturer Product Code LGWM 1/5
Basic Product Description Extreme Pressure (EP), low temperature grease, 5 kg can
Size (Per Unit) 5 Kg
UOM Each
Base Oil Viscosity cSt @ 40°C 200
Weight (Kg) 5
Dropping point > 170 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max.
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0
Oil separation DIN 51 817 7 days at 40 °C: 8-13 %
Copper corrosion DIN 51811 2 max. at 90 °C
UN Code Standard (distilled water): 0-0; Water wash out: 0-0
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 3200 N
Thickener Lithium
Base type Mineral
Colour Brown
Container Can
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -30°C
Ex-2 Features 2 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max.
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0
Series 7 days at 40 °C: 8-13 %
Model 2 max. at 90 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 3200 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -30°C
Upper Operating Temperature +110°C
Basic Reference Grease
EAN code 7316570520750
