Metric, Bearing, Steel cage, Full complement

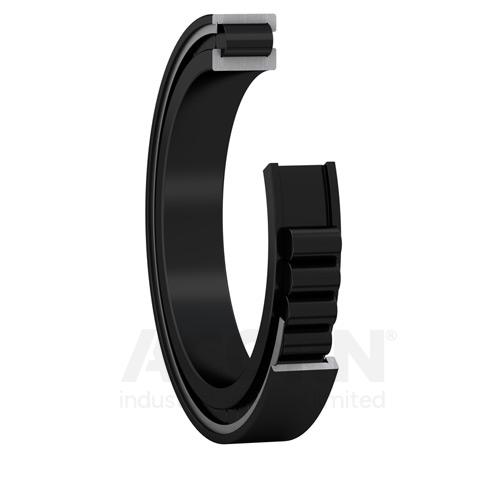

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
• Very high radial load carrying capacity
• High radial stiffness
• Long service life
• Locate the shaft axially in one direction
| Manufacturer Product Code | NCF 2984 V/L4B |
|---|---|
| Basic Product Description | Single row full complement cylindrical roller bearing, NCF design |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 420 |
| od (mm) | 560 |
| Width (mm) | 82 |
| Weight (Kg) | 74 |
| Bore Type | Cylindrical |
| Cage design | Full complement |
| Other Variations | Black oxidation surface treatment |
| Cage material | Steel cage |
| Bearing Material | Steel |
