Metric, Steel/PTFE, Seal on both sides, Maintenance-free, EAN code: 07316572060551

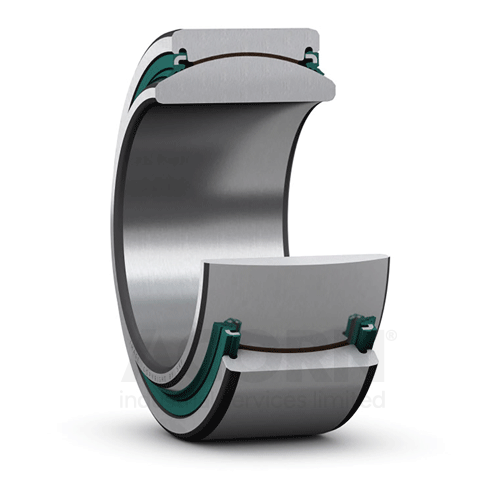

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/PTFE fabric sliding contact surface combination and the bearings are maintenance-free. Except for those with designation suffix TXGR, they have a double-lip contact seal (-2RS) or a triple-lip, heavy duty contact seal (-2LS) on both sides. Those with designation suffixes TXGR, TXG3E or TXG3A are made of stainless steel.
• Designed for radial and combined radial and axial loads
• Long service life and maintenance-free
• Suitable for very heavy, constant direction loads
• Low coefficient of friction
| ManufacturerProductCode | GE 50 TXG3E-2LS |
|---|---|
| Basic Product Description | Radial spherical plain bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| od (mm) | 75 |
| Width (mm) | 35 |
| Weight (Kg) | 0.528 |
| Lubrication | Maintenance-free |
| Seals | Seal on both sides |
| Relubrication feature | Without |
| Tolerance group | Normal (PN) |
| Sliding material, contacting surfaces | Steel/PTFE |
| Material, inner ring | Stainless steel |
| Material, outer ring | Stainless steel |
| Basic dynamic load rating | 440 kN |
| Basic static load rating | 735 kN |
| EAN-Code | 07316572060551 |
