Metric, Steel/Steel, Seal on both sides, EAN code: 07316575579715

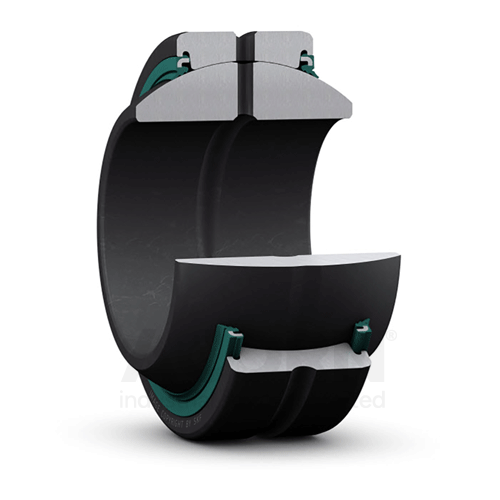

These radial spherical plain bearings have an SKF Explorer steel/steel sliding contact surface combination. They are initially lubricated and have a triple-lip, heavy-duty contact seal on both sides. Compared to conventional steel/steel bearings, they have increased dynamic load ratings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.
• Designed for radial and combined radial and axial loads
• Long service life
• Virtually maintenance-free
• Suitable for heavy static or impact loads
• Enable larger tilt angles
| ManufacturerProductCode | GEH 30 ESX-2LS |
|---|---|
| Basic Product Description | Radial spherical plain bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 55 |
| Width (mm) | 32 |
| Weight (Kg) | 0.284 |
| Seals | Seal on both sides |
| Relubrication feature | With |
| Tolerance group | Normal (PN) |
| Sliding material, contacting surfaces | Steel/Steel |
| Material, inner ring | Bearing steel |
| Material, outer ring | Bearing steel |
| Basic dynamic load rating | 120 kN |
| Basic static load rating | 400 kN |
| EAN-Code | 07316575579715 |
