Imperial, Steel/PTFE, Seal on both sides, EAN code: 7316575128586

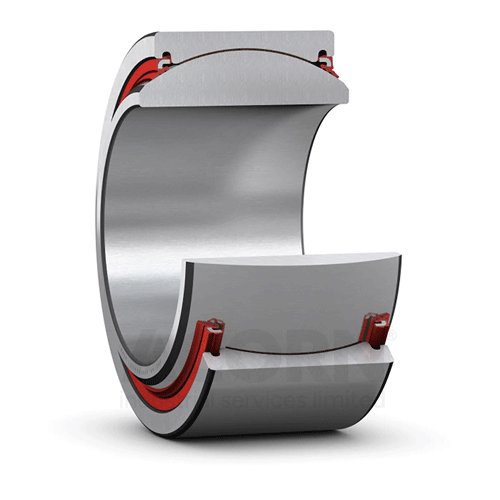

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/PTFE fabric sliding contact surface combination and the bearings are maintenance-free. They have a triple-lip, heavy duty contact seal on both sides.
• Designed for radial and combined radial and axial loads
• Long service life and maintenance-free
• Suitable for very heavy, constant direction loads
• Low coefficient of friction
| ManufacturerProductCode | GEZ112TXE-2LS |
|---|---|
| Basic Product Description | Radial spherical plain bearing |
| Measurement | Imperial |
| UOM | Each |
| id (mm) | 44.45 |
| od (mm) | 71.438 |
| Width (mm) | 38.89 |
| Weight (Kg) | 0.615 |
| Seals | Seal on both sides |
| Relubrication feature | With |
| Tolerance group | Normal (PN) |
| Sliding material, contacting surfaces | Steel/PTFE |
| Material, outer ring | Bearing steel |
| Basic dynamic load rating | 170 kN |
| Basic static load rating | 510 kN |
| EAN-Code | 7316575128586 |
