NAST30R, IKO, Separable Roller Followers
Track roller, Steel cage, Without, No oil hole is provided., Crowned outer ring
$39.27
In stock
- SALES: +44 (0)1709 789 933
Track roller, Steel cage, Without, Crowned outer ring, EAN code: 07316571063195

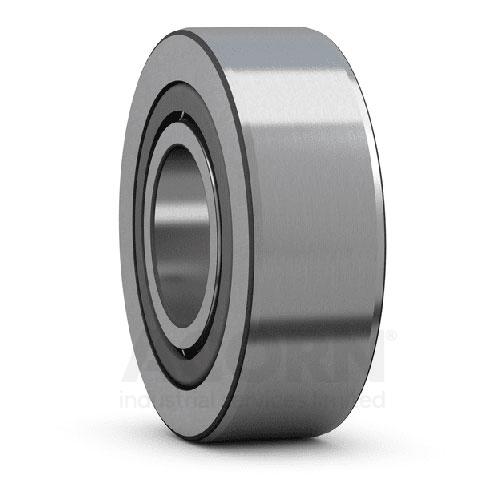

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The outer ring, the inner ring and the needle roller and cage assembly can be mounted separately.
• High radial load carrying capacity
• Able to withstand shock loads
• Long service life
• Ready to mount
• Separable design
| Manufacturer Product Code | STO 30 |
|---|---|
| Basic Product Description | Support rollers (Yoke-type track rollers) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 62 |
| Width (mm) | 20 |
| Number of Rows | 1 |
| Weight (Kg) | 0.308 |
| Sealing | Without |
| Sealing type | Open |
| Outer ring profile | Crowned outer ring |
| Clearance | CN |
| Rolling elements | Needle rollers |
| Cage material | Steel cage |
| Bearing Material | Bearing Steel |
| Basic static load rating | 22900 kN |
| Limiting speed | 34500 kN |
| Reference speed | 2600 |
| EAN-Code | 07316571063195 |
Track roller, Steel cage, Without, No oil hole is provided., Crowned outer ring
Track roller, Steel cage, Without, Crowned outer ring, EAN code: 4012802415735
This item is not currently available from our stocks.
Despatch date information is on request.
Track roller, Steel cage, Without, Crowned outer ring, EAN code: 9008745707896
