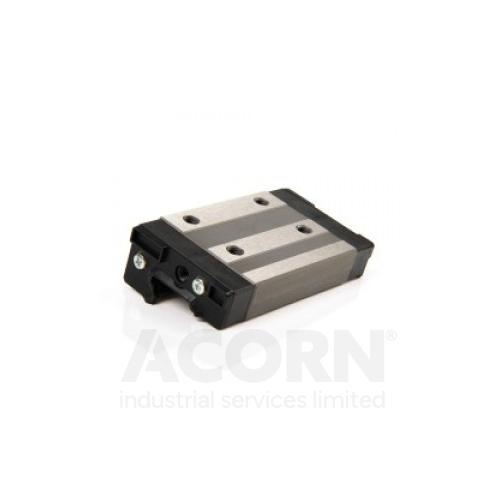

Linear slide, SS - With end seal + side seal + inner seal *
Model GSR has a special contact structure using circular-arc grooves. This increases self-adjusting capability and makes GSR an optimal model for places associated with difficulty establishing high accuracy and for general industrial machinery.
* Model GSR cannot be used in single-axis applications.
| Manufacturer Product Code | GSR15T1SS(GK) |
|---|---|
| Basic Product Description | Linear Slide With Recirculating Ball Design |
| UOM | Each |
| Height (mm) | 20 |
| Width (mm) | 32 |
| length (mm) | 59.8 |
| Rating C Kn | 8.42 |
| Rating C0 kN | 9.77 |
| Weight (Kg) | 0.13 |
| Sealing | SS - With end seal + side seal + inner seal * |
| Option | T |
| Temperature resistance | -20 to +80 °C |
