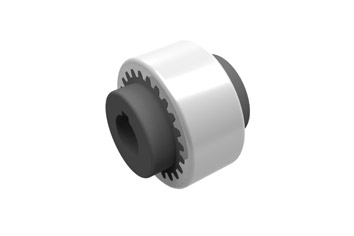

Radicon Nylicon gear couplings

What are the benefits of Radicon Nylicon couplings?

Radicon Nylicon couplings compensate for all types of shaft misalignment and are a cost effective solution for low power applications.

• Easy to assemble
• Zero maintenance
• Reliable
• Cost effective solution
• Ideal for arduous and harsh conditions

Nylicon flexible gear couplings are available in three sizes and are ideal for small power drives with bore sizes up to 55mm (2.25 inches) diameter and a basic rated torque up to 342 Lb.ft

Uniform Loading

Thermosetting plastic sleeves provide non conductive assemblies. Staggered internal teeth ensure uniform loading and an internal central buffer ring between the two hubs promote axial location giving protection to the gear teeth.

Low Cost Option

They compensate for all types of shaft misalignment and allow a small amount of end float. Nylicon couplings are easy to assemble and require no maintenance giving low cost reliable service under the most arduous conditions of weather, atmospheric pollution or humidity.

Specification

Nylicon couplings are available pilot bored (i.e. without keyways) allowing the customer to finish machine bores and keyways to special requirements, or supplied with standard bores and
keyways. Each size of coupling can have any combination of pilot and/or standard bores. Socket set screws and setting gauge are provided with each coupling.
