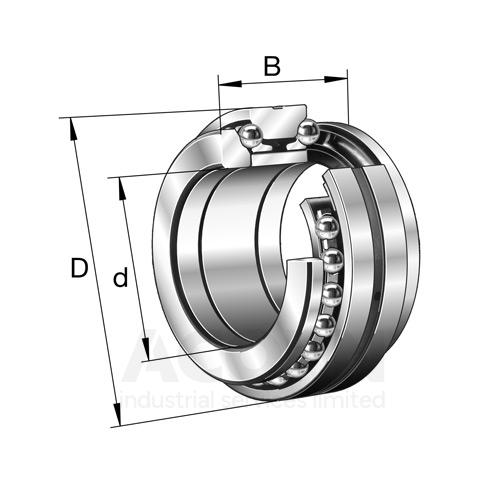

234410-M-SP, FAG, Axial angular contact ball bearing, double direction, separable, restricted tolerances

Bearing, Bearing steel, Open (no seal), 60° Contact angle, EAN code: 4012801193504

ACORN is an FAG Authorised Distributor
Brand FAG
Mfr Part No. 234410-M-SP
Acorn Code 234410-M-SP-FAG
HS Code 8482 10 90 30
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 Germany (DE)

$622.88

− +

Specification

Product Attributes
Manufacturer Product Code 234410-M-SP
Basic Product Description Axial angular contact ball bearing, double direction, separable, restricted tolerances
Measurement Metric
UOM Each
id (mm) 50
od (mm) 80
Width (mm) 38
Weight (Kg) 0.632
Sealing Open (no seal)
Contact Angle 60° Contact angle
Accuracy Tolerance class SP
Cage material Brass cage
Bearing Material Bearing steel
Basic dynamic load rating 27500
Basic static load rating 79000
Limiting speed 7000
EAN 4012801193504
