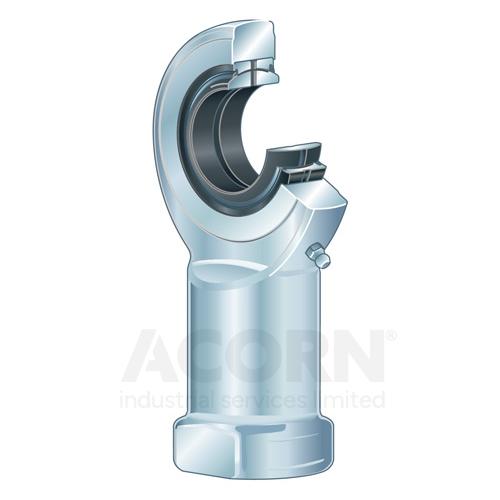

GIR35-DO-2RS, INA, Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, sealed

Rod end, Steel/Steel, Female connection, Right-hand thread, Requires maintenance, EAN code: 4012802526950

Brand	INA
Mfr Part No.	GIR35-DO-2RS
Acorn Code	GIR35-DO-2RS-INA
HS Code	8483 30 80 90
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Germany (DE)

$108.56

Add to basket

Specification

Product Attributes
Manufacturer Product Code	GIR35-DO-2RS
Basic Product Description	Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, sealed
Bore diameter, bearing inner ring (mm)	35
od (mm)	55
Width, bearing inner ring (mm)	25
Weight (Kg)	1.43
Lubrication	Requires maintenance
Features	Female connection
Thread (L/R)	Right-hand thread
Sealing solution	Sealed
Bearing Material	Steel/Steel
EAN code	4012802526950

GIR35-DO-2RS, INA, Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, sealed
