Metric, Rod end, ELGOGLIDE, Male connection, Left-hand thread, Maintenance free, EAN code: 4012802528848
| Brand | INA |
|---|---|
| Mfr Part No. | GAL35-UK-2RS-A |
| Acorn Code | GAL35-UK-2RS-A-INA |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

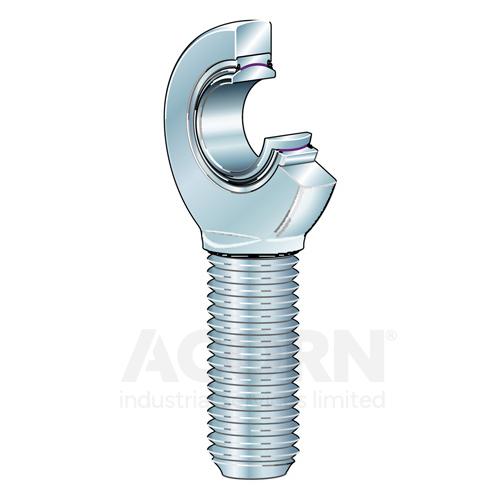

Rod end with external thread, left hand thread, maintenance-free, sliding layer: ELGOGLIDE, DIN ISO 12240-4, dimension series E, type M, inner ring curved surface with hard chromium coating, sealed
| Manufacturer Product Code | GAL35-UK-2RS-A |
|---|---|
| Basic Product Description | Rod end with ext. left hand thread, maintenance-free, ELGOGLIDE, inner chromium coating, sealed |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring | 35 |
| Outside diameter, housing eye | 82 |
| Weight (Kg) | 1.53 |
| Lubrication | Maintenance free |
| Sealing solution | Double lip seals |
| 4 | Male connection |
| Thread (L/R) | Left-hand thread |
| Bearing Material / Liner | ELGOGLIDE |
| Basic dynamic load rating | 212000 |
| Basic static load rating | 159000 |
| EAN code | 4012802528848 |
