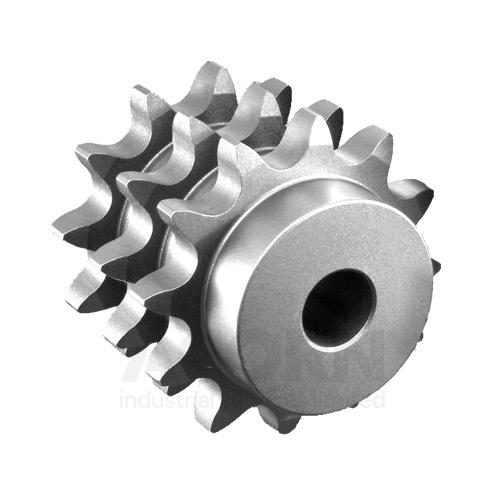

06B-3-16, Neutral, Pilot Bore Sprocket

BS, Steel, Pilot Bore Sprocket

Brand Neutral
Mfr Part No. 06B-3-16
Acorn Code 06B-3-16-NEUTRAL
HS Code 8483 90 20 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 China (CN)

$4.80

− +
In stock

Pilot bore chain sprockets offer the flexibility of custom boring to suit a specific application or shaft size.
Used for the transmission of power between drive shafts through roller chains. Manufactured in steel or cast iron in a range of tooth pitches, designed for use with respective pitches of roller chain.


Specification

Product Attributes
Manufacturer Product Code 06B-3-16
Basic Product Description Pilot Bore Sprocket
Standard BS/ANSI BS
UOM Each
Tooth Pitch (ANSI) Inch 3/8
Tooth Pitch mm 9.52
No. Teeth (mm) 16
External Diameter (mm) 52.3
Pitch Diameter (mm) 48.82
Bore/id (mm) 12
Hub Size (mm) 37
Width (mm) 35
Weight (Kg) 0.3
Bore Type Pilot Bore
No. Teeth Rows Triplex - 3 Row
Material Steel
