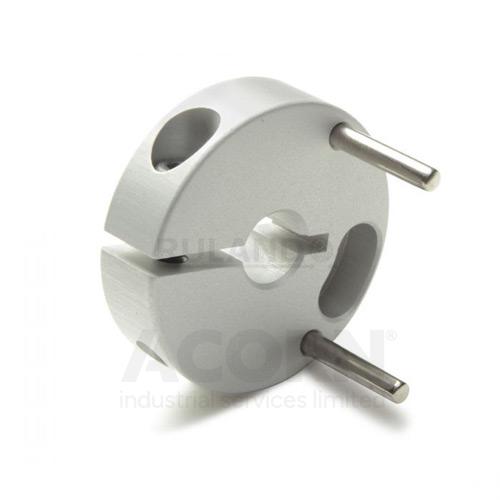

MCPTD56-20-A, Ruland, Controlflex coupling hub, three-piece design

Ruland MCPTD-A is a Controlflex coupling hub.

It is a component in a four-piece design consisting of two aluminium hubs mounted by pins to two acetal inserts creating a lightweight low inertia coupling capable of speeds up to 22,000 RPM. This four-piece design allows for a highly customizable coupling that easily combines clamp hubs with inch, metric, keyed, and keyless bores.

MCPTD-A has a thinner length than regular hubs allowing it to be used in confined spaces. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. Controlflex couplings have a balanced design for reduced vibrations at high speeds, can accommodate all forms of misalignment, and are an excellent fit for encoders, tachometers, and light duty stepper servo positioning applications.

MCPTD-A is RoHS3 and REACH compliant.

Specification
