AHX319, FAG, Withdrawal sleeve, M105x2
Metric, Sleeve, M105x2, EAN code: 4012801307079
$84.80
Brand | FAG |
---|---|
Mfr Part No. | AHX319 |
Metric, Sleeve, M 105x2, EAN code: 7316577013224
Brand | SKF |
---|---|
Mfr Part No. | AHX 319 |
Acorn Code | AHX319-SKF |
HS Code | 8482 99 00 90 |
COO | Sweden (SE) |

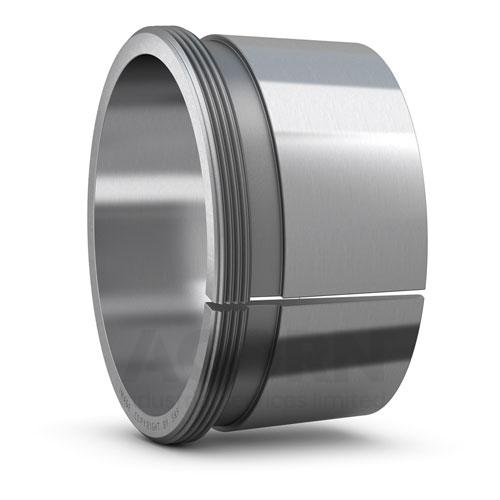

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AH(X) sleeve has dimensions in accordance with ISO standards and is a basic design for mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.
• Cost effective
• Quick and easy mounting
Manufacturer Product Code | AHX 319 |
---|---|
Basic Product Description | Withdrawal sleeve, basic design, ISO standards |
Measurement | Metric |
UOM | Each |
ID or length (mm) | 90 |
OD or breadth (mm) | 105 |
Width or height (mm) | 57 |
Weight (kg) | 0.52 |
Thread | M 105x2 |
Holes for oil injection | Without |
EAN code | 7316577013224 |
Metric, Sleeve, M105x2, EAN code: 4012801307079
Brand | FAG |
---|---|
Mfr Part No. | AHX319 |
Metric, Sleeve, M 105x2, EAN code: 00029176534782
Brand | RHP |
---|---|
Mfr Part No. | AHX319 |
Metric, Sleeve, M 105x2, EAN code: 0087796303324
Brand | Timken |
---|---|
Mfr Part No. | AHX319 |
Metric, Sleeve, M 105x2, EAN code: 9008745745324
Brand | NKE |
---|---|
Mfr Part No. | AHX319 |
