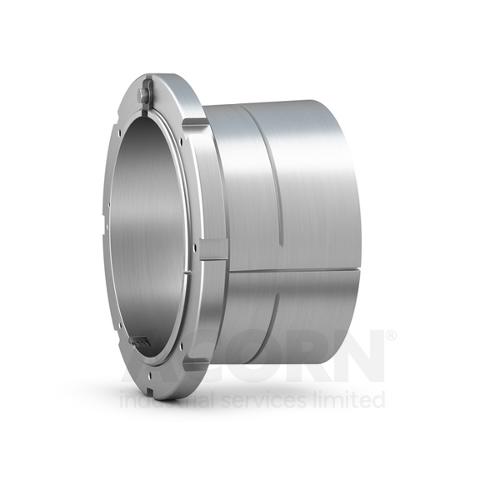

Metric, Sleeve, Tr340x5, EAN code: 7316571191966
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. These sleeves enable use of the oil injection method to mount and dismount bearings, and they are slit and are supplied complete with a lock nut and locking device. They are easy to install and require no additional location on the shaft.
• Easy to install
• Complete with lock nut
• Complete with locking device
| Manufacturer Product Code | OH 3068 H |
|---|---|
| Basic Product Description | Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions |
| Measurement | Metric |
| UOM | Each |
| ID or length (mm) | 320 |
| OD or breadth (mm) | 400 |
| Width or height (mm) | 187 |
| Weight (kg) | 26.1 |
| Thread | Tr340x5 |
| Holes for oil injection | With |
| EAN code | 7316571191966 |
Metric, Sleeve, Tr340x5, EAN code: 7316571191966
This item is currently out of stock.
You may place your order now and we will dispatch it as soon as stock arrives.
