Gas cell producing gas, High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations, Single point automatic lubricator

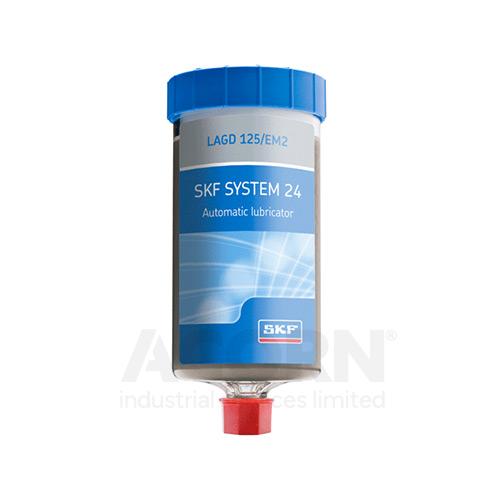

The SKF SYSTEM 24 LAGD 125/EM2 is a gas driven single point automatic lubricator. It is filled with 125 ml of SKF LGEM 2 high viscosity bearing grease with solid lubricants. It is recommended for low speeds and high loads.The key benefits of using a LAGD automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | LAGD 125/EM2 |
|---|---|
| Basic Product Description | Automatic lubricator with LGEM 2 grease, 125ml |
| Product type | Single point automatic lubricator |
| Lubricant Group | LGEM 2 |
| Weight (Kg) | 0.195 |
| Lubricant description | High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations |
| Drive Mechanism | Gas cell producing gas |
| Mounting Type | Single point |
| Connection thread | R 1/4 |
| Intrinsically safe approval | II 1 G Ex ia IIC T6 Ga; II 1 D Ex ia IIIC T85°C Da; I M1 Ex ia I Ma |
| Ambient temperature range | -20 to +60 °C (-5 to +140 °F) |
| Lubricant Type | Grease |
| Maximum feed line length | 300 mm |
| Maximum operating pressure | 5 bar |
| Environmental protection | IP 68 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Capacity | 125 ml |
| Features | • Flexible dispense rate from 1 to 12 months • Intrinsic safety rating: ATEX approved for zone 0 • Transparent lubricant container allows visual inspection of dispense rate • Compact size, permits installation in restrictive areas |
