LAGD 125/U, Empty *, EAN code: 07316570310078

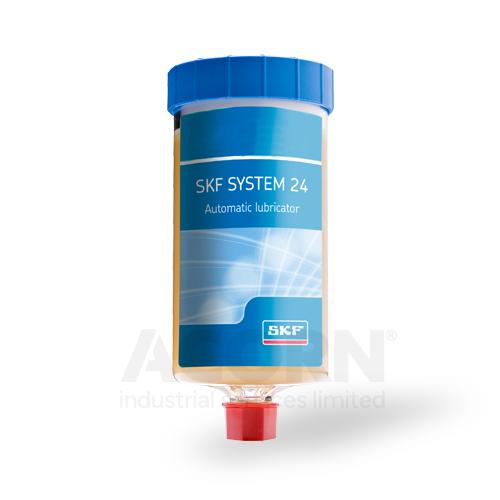

The SKF SYSTEM 24 LAGD 125/U is a gas driven single point automatic lubricator. The lubricator is empty and is recommended for oil filling. The key benefits of using a LAGD automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | LAGD 125/U |
|---|---|
| Basic Product Description | Automatic lubricator empty, 125ml |
| Product type | LAGD 125/U |
| Lubricant Group | Empty |
| Weight (Kg) | 0.097 |
| Lubricant description | Empty * |
| Drive Mechanism | Gas cell producing inert gas |
| Mounting Type | Single point |
| Connection thread | R 1/4 |
| Special features | non-return valve included |
| Intrinsically safe approval | II 1 G Ex ia IIC T6 Ga; II 1 D Ex ia IIIC T85°C Da; I M1 Ex ia I Ma |
| Ambient temperature range | -20 to +60 °C (-5 to +140 °F) |
| Maximum operating pressure | 5 bar |
| Environmental protection | IP 68 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Trademark | System 24 |
| Capacity | 125 ml |
