Gas cell producing gas, Grease for high loads, wet environments and high temperatures, Single point automatic lubricator, EAN code: 07316572053089
| Quantity | Price per unit |
|---|---|
| 1 - 9 | $36.82 |
| 10 + | $28.82 |

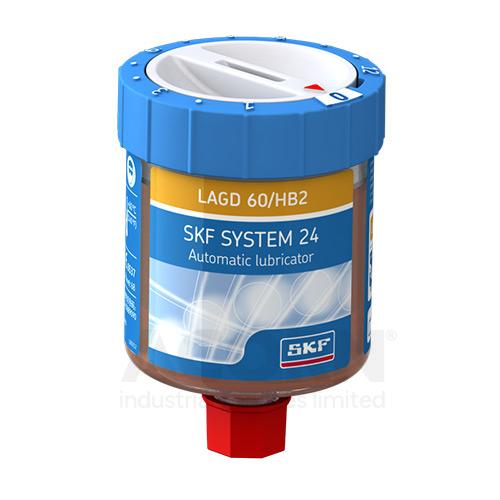

The SKF SYSTEM 24 LAGD 60/HB2 is a gas driven single point automatic lubricator. It is filled with 60 ml of SKF LGHB 2 grease for high loads, wet environments and high temperatures recommended for plain bearings, conveyors, applications with high loads and low speeds.The key benefits of using a LAGD automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | LAGD 60/HB2 |
|---|---|
| Basic Product Description | Automatic lubricator with LGHB 2 grease, 60ml |
| Product type | Single point automatic lubricator |
| Lubricant Group | LGHB 2 |
| Weight (Kg) | 0.137 |
| Lubricant description | Grease for high loads, wet environments and high temperatures |
| Drive Mechanism | Gas cell producing gas |
| Mounting Type | Single point |
| Connection thread | R 1/4 |
| Intrinsically safe approval | II 1 G Ex ia IIC T6 Ga; II 1 D Ex ia IIIC T85°C Da; I M1 Ex ia I Ma |
| Ambient temperature range | -20 to +60 °C (-5 to +140 °F) |
| Lubricant Type | Grease |
| Maximum feed line length | 300 mm |
| Maximum operating pressure | 5 bar |
| Environmental protection | IP 68 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Capacity | 60 ml |
| Features | • Flexible dispense rate from 1 to 12 months • Intrinsic safety rating: ATEX approved for zone 0 • Transparent lubricant container allows visual inspection of dispense rate • Compact size, permits installation in restrictive areas |
