Electro mechanical, Grease for wide temperature range and extreme pressure, Single point automatic lubricator, EAN code: 07316575884970
| Brand | SKF |
|---|---|
| Mfr Part No. | TLMR 101/38WA2 |
| Acorn Code | TLMR101/38WA2-SKF |
| HS Code | 8482 99 00 90 |
| COO | Czech Republic (CZ) |

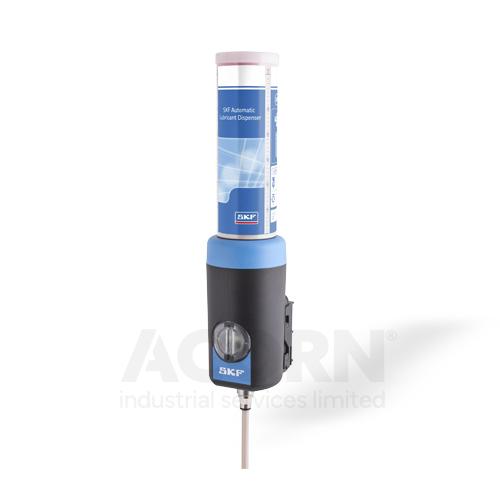

The SKF Automatic Lubricant Dispenser TLMR 101/38WA2 is an electro-mechanical lubricator designed to pump grease to a single point. It is delivered ready-to-use with a 380 ml cartidge of LGWA 2 and battery pack included. With a relatively high pressure, this lubricator can operate at long distances and provide optimum lubrication to difficult-to-reach and unsafe lubrication points. The TLMR lubricator is robust and is suitable for operating in a wide temperature range in presence of vibrations. Battery powered for flexible positioning. Typical applications:• Application with high lubricant consumptions• Applications experiencing high vibrations in operation• Excellent high temperature performance, especially suitable for engine rooms and hot fan applications• Excellent low temperature performance, especially suitable for wind turbine applications
| Manufacturer Product Code | TLMR 101/38WA2 |
|---|---|
| Basic Product Description | SKF Automatic Lubricant Dispenser filled with LGWA 2 Battery powered |
| Product type | Single point automatic lubricator |
| Lubricant Group | LGWA 2 |
| Weight (Kg) | 1.6 |
| Lubricant description | Grease for wide temperature range and extreme pressure |
| Drive Mechanism | Electro mechanical |
| Mounting Type | Single point |
| Connection thread | G 1/4 |
| Lubricant Type | Grease |
| Battery packs | 4x AA Lithium batteries (included with refill cartridge) |
| Maximum operating pressure | 30 bar |
| No. Lubrication Points | 1 |
| Features | Ready-to-use with 380 ml cartridge of LGWA 2 included Wide temperature range and temperature independent dispense rate Wide range of dispense rates up to 24 months Maximum discharge pressure of 30 bars (435 psi) over the whole dispensing period Flexible positioning with battery powered version |
