TLSD 125/HMT68, EAN code: 07316575835637

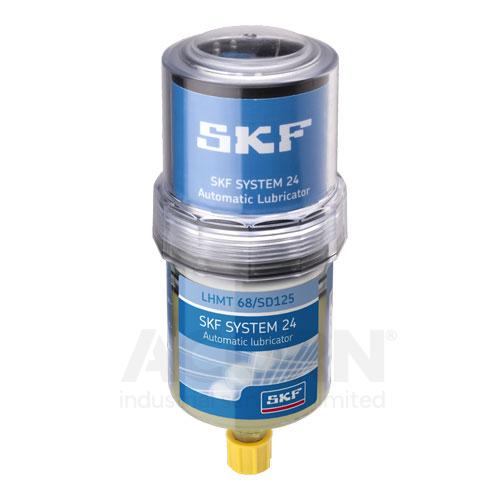

The SKF SYSTEM 24 TLSD 125/HMT68 is an electro-mechanical single point automatic lubricator. It is filled with 125 ml of SKF LHMT 68 chain oil.Key benefits of using an automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | TLSD 125/HMT68 |
|---|---|
| Basic Product Description | Automatic lubricator with 125 ml LHMT 68 oil |
| Product type | TLSD 125/HMT68 |
| Lubricant Group | LHMT 68 |
| Weight (Kg) | 0.66 |
| Drive Mechanism | Electro mechanical |
| Mounting Type | Single point |
| Connection thread | G 1/4 |
| Ambient temperature range | 0 to 50 °C; -10 to +50 °C with TLSD 1-BATC |
| Lubricant Type | Oil |
| Battery packs | TLSD 1-BAT: 4.5V, 2.7 Ah, Alkaline manganese |
| Maximum feed line length | up to 5 m |
| Maximum operating pressure | 5 bar |
| Lowest grease purge | 0.3 ml per day |
| Highest grease purge | 4.1 ml per day |
| Environmental protection | IP 65 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Trademark | System 24 |
| Capacity | 125 ml |
