Electro mechanical, Chain oil, Single point automatic lubricator, EAN code: 07316575835651
| Brand | SKF |
|---|---|
| Mfr Part No. | TLSD 250/HMT68 |
| Acorn Code | TLSD250/HMT68-SKF |
| HS Code | 8482 99 00 90 |
| COO | Portugal (PT) |

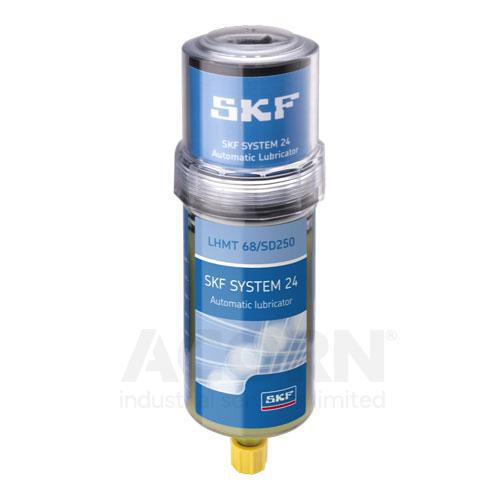

The SKF SYSTEM 24 TLSD 250/HMT68 is an electro-mechanical single point automatic lubricator. It is filled with 250 ml of SKF LHMT 68 chain oil.Key benefits of using an automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.
| Manufacturer Product Code | TLSD 250/HMT68 |
|---|---|
| Basic Product Description | Automatic lubricator with 250 ml LHMT 68 oil |
| Product type | Single point automatic lubricator |
| Lubricant Group | LHMT 68 |
| Weight (Kg) | 0.88 |
| Lubricant description | Chain oil |
| Drive Mechanism | Electro mechanical |
| Mounting Type | Single point |
| Connection thread | G 1/4 |
| Ambient temperature range | 0 to 50 °C; -10 to +50 °C with TLSD 1-BATC |
| Lubricant Type | Oil |
| Battery packs | TLSD 1-BAT: 4.5V, 2.7 Ah, Alkaline manganese |
| Maximum feed line length | up to 5 m |
| Maximum operating pressure | 5 bar |
| Lowest grease purge | 0.7 ml per day |
| Highest grease purge | 8.3 ml per day |
| Environmental protection | IP 65 |
| Nominal emptying time | Adjustable; 1-12 months |
| No. Lubrication Points | 1 |
| Capacity | 250 ml |
| Features | Flexible dispense rate from 1 to 12 months Maximum discharge pressure of 5 bar over the whole dispensing period Lubricator's status visible with red/yellow/green LED Compact size permits installation in restrictive areas Supplied with support flange for enhanced sturdiness Suitable for both direct and remote installation |
