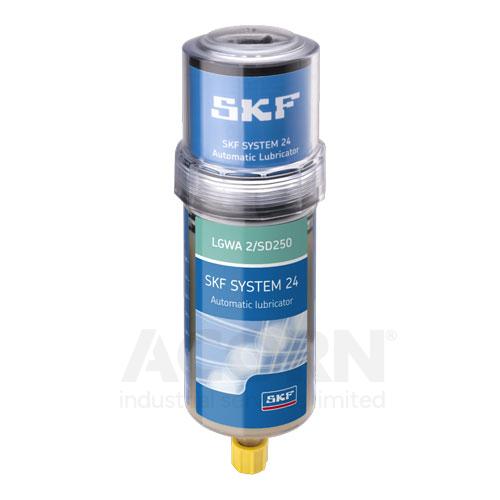

TLSD 250/WA2, SKF, Automatic lubricator with 250 ml LGWA 2 grease

Electro mechanical, Grease for wide temperature range and extreme pressure, Single point automatic lubricator, EAN code: 07316575835460

Brand SKF
Mfr Part No. TLSD 250/WA2
Acorn Code TLSD250/WA2-SKF
HS Code 8482 99 00 90
COO Portugal (PT)


in stock

The SKF SYSTEM 24 TLSD 250/WA2 is an electro-mechanical single point automatic lubricator. It is filled with 250 ml of SKF LGWA 2 grease for wide temperature ranges and extreme pressure. It is recommended for electric motors, conveyors, fans and pumps.Key benefits of using an automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.


Product Attributes
Manufacturer Product Code TLSD 250/WA2
Basic Product Description Automatic lubricator with 250 ml LGWA 2 grease
Product type Single point automatic lubricator
Lubricant Group LGWA 2
Weight (Kg) 0.764
Lubricant description Grease for wide temperature range and extreme pressure
Drive Mechanism Electro mechanical
Mounting Type Single point
Connection thread G 1/4
Ambient temperature range 0 to 50 °C; -10 to +50 °C with TLSD 1-BATC
Lubricant Type Grease
Battery packs TLSD 1-BAT: 4.5V, 2.7 Ah, Alkaline manganese
Maximum feed line length up to 3 m
Maximum operating pressure 5 bar
Lowest grease purge 0.7 ml per day
Highest grease purge 8.3 ml per day
Environmental protection IP 65
Nominal emptying time Adjustable; 1-12 months
No. Lubrication Points 1
Capacity 250 ml
Features Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar over the whole dispensing period
Lubricator's status visible with red/yellow/green LED
Compact size permits installation in restrictive areas
Supplied with support flange for enhanced sturdiness
Suitable for both direct and remote installation
