TIH 030M/230V, SKF, Induction Heater TIH 030M (230V version)

Small, Induction heater, 200-240V/50-60Hz, 2.0 kVA, EAN code: 07316572338445

SKF
Brand SKF
Mfr Part No. TIH 030M/230V
Acorn Code TIH030M/230V-SKF
HS Code 8514 40 00 00
COO Netherlands (NL)

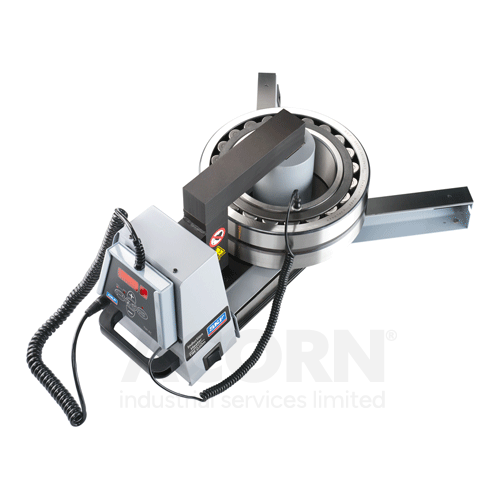

The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg.

• Easy and safe to use with automatic temperature control or time controlled heating
• Automatic demagnetization reduces risk of bearing contamination
• Suitable for non-bearing applications for workpieces weighing up to 20 kg
• Automatic temperature hold function to keep the bearing hot after completion of the heating cycle

Specification

Product Attributes
Manufacturer Product Code TIH 030M/230V
Basic Product Description Induction Heater TIH 030M (230V version)
UOM Each
Width (mm) 460
Length (mm) 200
Height (mm) 260
Total weight (incl. yokes) 20.9
Heater Type Small
Temerature Control 20°C to 250°C (68°F to 482°F)
Power Supply 200-240V/50-60Hz
Maximum Power Consumption 2.0 kVA
Demagnetisation <2 A/cm
Voltage and frequency  200-240 V/50-60Hz
Voltage Classification LV
Coil Diameter 95mm
Standard yokes (included) for minimal bore diameter 1 x 65mm, 1 x 40mm, 1 x 20mm
Optional yokes for minimal bore diameter 30;60 mm
Max. Bearing Weight (Kg) 40 Kg
Bore Diameter Range (mm) 20-300mm
Operating Area (w) x (h) 100 x 135mm
EAN code 07316572338445
