TKBA 11, SKF, Belt alignment tool, Precision tool allowing pulley and chain drive alignment

SKF Authorised distributor logo
Brand SKF
Mfr Part No. TKBA 11
Acorn Code TKBA11-SKF
HS Code 8514 40 00 00
COO Netherlands (NL)

$510.61

+

Precision tool allowing pulley and chain drive alignment

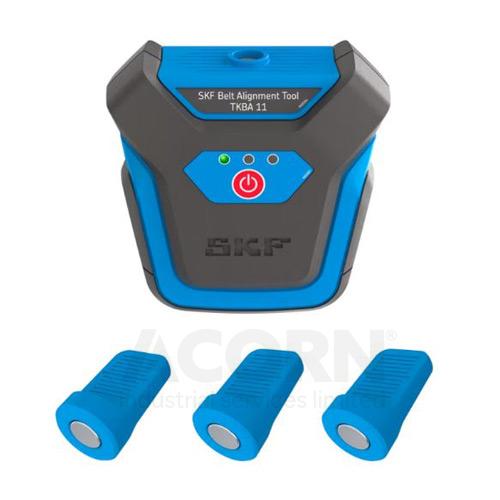

The tool has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily - using a powerful magnet - to the inside or outside face of a belt pulley or chain sprocket. The TKBA 11 can be applied to most machines that use V belts, banded belts and ribbed belts - as well as those with chain sprockets. A laser line is projected from the emitting unit to the passive targets - which are mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle, and parallel misalignment - including combinations of all three.

•One laser emitter with three passive targets
•Uses a red laser diode and can be used for distances up to 3 m (10 ft)
•Fast, easy attachment
•Simplified alignment process
•Simultaneous adjustment of tension and alignment
•Applicable to most machines using V belts, banded belts, ribbed belts - as well as chain sprockets.

Typical applications:
SKF Belt Alignment Tools are commonly used in power plants, recycling facilities, chemical plants, and food & beverage production.

Belt drives are found in a variety of applications, including HVAC, pump installations, paper mills, flour mills, lathe machines, milling machines and conveyors. Sprocket drives are often used in agricultural machinery, compressors, and engine camshafts.

Aligning belt drives and chain drives accurately helps to reduce wear on belts, pulleys, chains, and sprockets. As well as extending belt and pulley life, a precise alignment also reduces machine vibration. Typical benefits of this include improved machine performance, a reduction in unscheduled downtime and lower energy costs.


Specification

Product Attributes
Manufacturer Product Code TKBA 11
Basic Product Description Belt alignment tool, Precision tool allowing pulley and chain drive alignment
UOM KIT
Contents 1
Weight (Kg) 0.85
Laser Type Red laser diode
Mounting Magnetic, side mounted
Battery 3 x AAA Alkaline type IEC LR03
Laser wavelength 635 nm
Laser power <1 mW, class 2
Laser line length 2.4 m at 2 m
Measurement distance 50 mm to 3 m
Measurement accuracy angular Better than 0.02° at 2 m
Measurement accuracy offset Better than 0.5 mm
Housing Material ABS + 2K and Aluminium base powder coat finish
IP Rating IP 40
Operating Time 32
