TKBA 31, SKF, Belt alignment tool, Pro advanced tool allowing pulley and chain drive alignment

Brand SKF
Mfr Part No. TKBA 31
Acorn Code TKBA31-SKF
HS Code 8482 99 00 90
COO Netherlands (NL)



Pro advanced tool allowing pulley and chain drive alignment

The tool has two components: a laser-transmitting unit and a receiver unit. Each is attached quickly and easily - using a powerful magnet - to the inside or outside face of a belt pulley or chain sprocket. The TKBA 31 can be applied to most machines that use V belts, banded belts, and ribbed belts - as well as those with chain sprockets. A laser line is projected from the transmitter to the receiver - which is mounted on the opposite pulley. The tool then corrects for vertical angle, horizontal angle, and parallel misalignment - including combinations of all three.

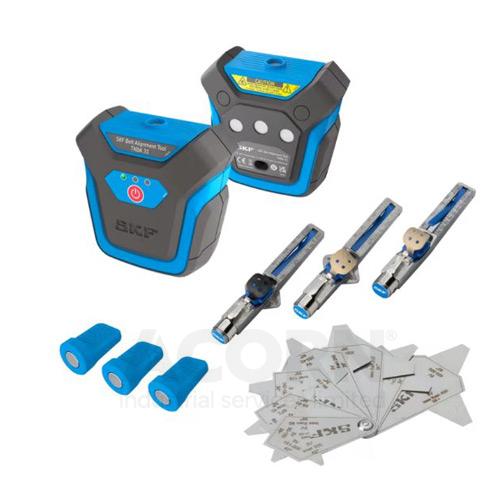

•Two laser receiver units
•Each unit uses a green laser diode and can be used for distances up to 6 m (20 ft) - including outdoors in sunny conditions.
•Three targets
•Three belt tension checkers
•Wear check gauges
•Fast, easy attachment - using powerful magnets
•Simplified alignment process
•Simultaneous adjustment of tension and alignment
•Applicable to most machines using V belts, banded belts, ribbed belts - as well as chain sprockets

Typical applications:
SKF Belt Alignment Tools are commonly used in power plants, recycling facilities, chemical plants, and food & beverage production.

Belt drives are found in a variety of applications, including HVAC, pump installations, paper mills, flour mills, lathe machines, milling machines and conveyors. Sprocket drives are often used in agricultural machinery, compressors, and engine camshafts.

Aligning belt drives and chain drives accurately helps to reduce wear on belts, pulleys, chains, and sprockets. As well as extending belt and pulley life, a precise alignment also reduces machine vibration. Typical benefits of this include improved machine performance, a reduction in unscheduled downtime and lower energy costs.


Product Attributes
Manufacturer Product Code TKBA 31
Basic Product Description Belt alignment tool, Pro advanced tool allowing pulley and chain drive alignment
Contents 2
Weight (Kg) 1.88
Laser Type Green laser diode
Mounting Magnetic, side mounted
Battery 3 x AAA Alkaline type IEC LR03
Laser wavelength 520nm
Laser power <1 mW, class 2
Laser line length 2.4 m at 2 m
Measurement distance 50 mm to 6 m
Measurement accuracy angular Better than 0.02° at 2 m
Measurement accuracy offset Better than 0.5 mm
Housing Material ABS + 2K and Aluminium base powder coat finish
IP Rating IP 40
Operating Time 6
