CF12BR, IKO, Metric Cam Follower
Track roller, M12X1.5
Brand | IKO |
---|---|
Mfr Part No. | CF12BR |
Stud-type track roller, Crowned, M12x1.5, EAN code: 07316577011404
Brand | SKF |
---|---|
Mfr Part No. | KR 30 |
Acorn Code | KR30-SKF |
HS Code | 8482 40 00 00 |
COO | XXX |

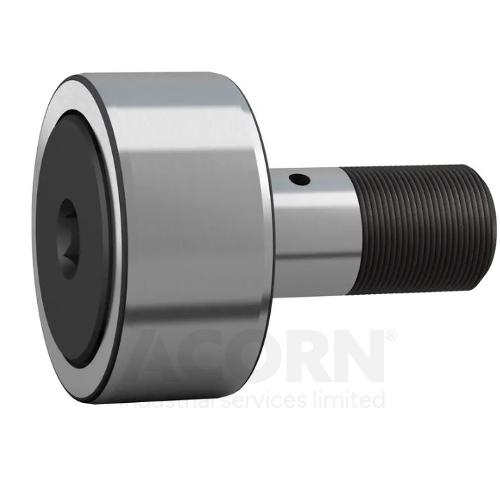

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated via the stud.
• High radial load carrying capacity
• Accommodate axial loads due to skew or tilting
• Long service life
• Easy to mount
• Sealed for increased reliability, with relubrication feature
Manufacturer Product Code | KR 30 |
---|---|
Basic Product Description | Cam follower with relubrication feature |
UOM | Each |
id (mm) | 12 |
od (mm) | 30 |
Width (mm) | 40 |
Thread | M12x1.5 |
Weight (Kg) | 0.095 |
Outer ring profile | Crowned |
Relubrication feature | Centre of each stud end and radial hole in stud shank |
Bearing Material | Bearing Steel |
Load Ratings C (n) | 6.16 |
Load Ratings C0 (N) | 8 |
Limiting speed | 4500 |
EAN code | 07316577011404 |
Track roller, M12X1.5
Brand | IKO |
---|---|
Mfr Part No. | CF12BR |
Yoke type track roller, Hexagon socket, 12, EAN code: 4012802422924
Brand | INA |
---|---|
Mfr Part No. | KR 30 B |
Track roller, M12X1.5
Brand | IKO |
---|---|
Mfr Part No. | CF12R |
