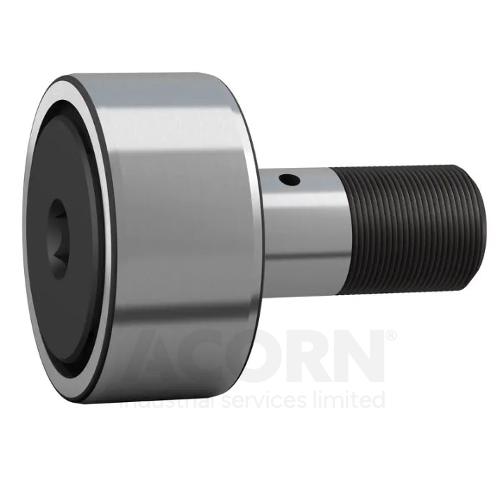

Stud-type track rollers, Cylindrical
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.
• High radial load carrying capacity
• Accommodate axial loads due to skew or tilting
• Long service life
• Easy to mount
• Sealed for increased reliability, with relubrication feature
| Manufacturer Product Code | KRV 16 PPXA |
|---|---|
| Basic Product Description | Cam follower with integral sealing and relubrication feature |
| UOM | Each |
| id (mm) | 6 |
| od (mm) | 16 |
| Width (mm) | 28 |
| Weight (Kg) | 0.02 |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Outer ring profile | Cylindrical |
| Bearing Material | Bearing Steel |
Stud-type track roller, Cylindrical, EAN code: 07316570957563
This item is currently out of stock.
You may place your order now and we will dispatch it as soon as stock arrives.
