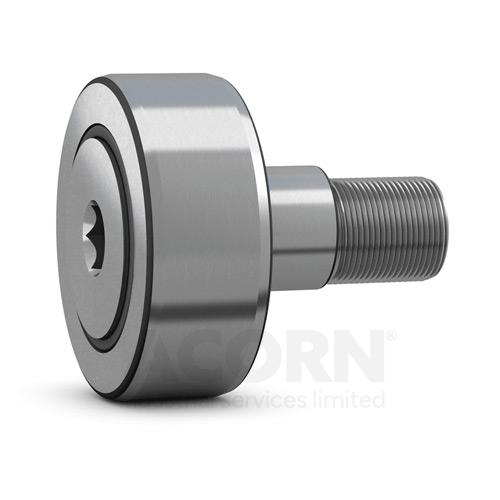

Stud-type track roller, Crowned, EAN code: 07316570523843
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.
• High radial load carrying capacity
• Accommodate relatively heavy axial loads due to skew or tilting
• Long service life
• Easy to mount
• Sealed for increased reliability, with relubrication feature
| Manufacturer Product Code | NUKRE 47 A |
|---|---|
| Basic Product Description | Cam follower with eccentric collar, integral sealing and relubrication feature |
| UOM | Each |
| id (mm) | 20 |
| od (mm) | 47 |
| Width (mm) | 66 |
| Weight (Kg) | 0.464 |
| Sealing | Seal on both sides |
| Sealing type | Labyrinth |
| Outer ring profile | Crowned |
| Relubrication feature | Centre of each stud end |
| Bearing Material | Bearing Steel |
| Load Ratings C (n) | 28.6 |
| Load Ratings C0 (N) | 33.5 |
| Limiting speed | 3800 |
| EAN code | 07316570523843 |
Track roller, Hexagon socket, Optimized INA-profile, 20, EAN code: 4012802417715
This item is currently out of stock.
You may place your order now and we will dispatch it as soon as stock arrives.
Track roller, Hexagon socket, Optimized INA-profile, 20, EAN code: 4047643189101
This item is currently out of stock.
You may place your order now and we will dispatch it as soon as stock arrives.
Track roller
