Metric, Bearing, EAN code: 07316577014702

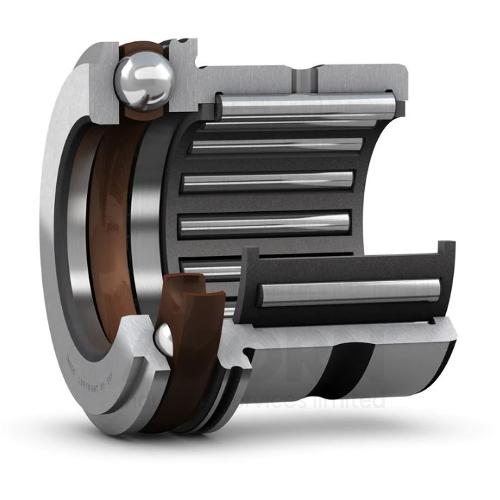

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
• Accommodate radial and axial loads in one direction
• High load carrying capacity
• Relatively high-speed capability
• Low cross section
• Separable design
| Manufacturer Product Code | NKX 17 |
|---|---|
| Basic Product Description | Combined needle roller / thrust ball bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 17 |
| od (mm) | 26 |
| Width (mm) | 25 |
| Weight (Kg) | 0.053 |
| Accuracy | Other |
| Axial load capability | Single-direction |
| Limiting speed | 12000 r/min |
| Reference speed | 8500 r/min |
| EAN code | 07316577014702 |
