$86.71
Despatched in 4-5 days
- SALES: +44 (0)1709 789 933
Metric, Bearing, EAN code: 07316570293562

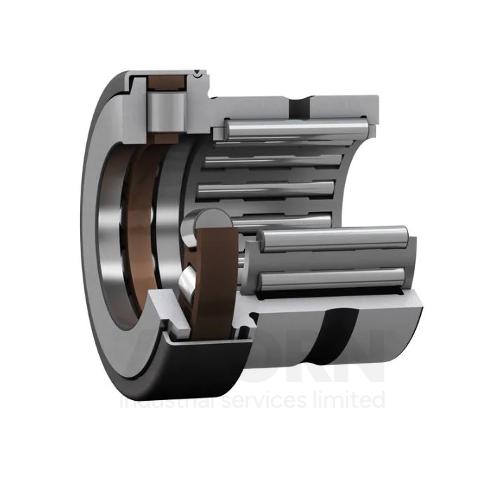

These bearings consist of a radial needle roller bearing combined with a cylindrical roller thrust bearing. Together they can accommodate both radial loads and axial loads in one direction. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.
• Accommodate radial and axial loads in one direction
• High load carrying capacity
• Low cross section
• Non-separable design
| Manufacturer Product Code | NKXR 25 Z |
|---|---|
| Basic Product Description | Combined needle roller / cylindrical roller thrust bearing with a cover |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 25 |
| od (mm) | 37 |
| Width (mm) | 30 |
| Weight (Kg) | 0.13 |
| Accuracy | Other |
| Axial load capability | Single-direction |
| Limiting speed | 6300 r/min |
| Reference speed | 3200 r/min |
| EAN code | 07316570293562 |
Metric, Bearing, EAN code: 4012802664911
This item is not currently available from our stocks.
Despatch date information is on request.
Each, Bearing, EAN code: 9008745720147
This item is not currently available from our stocks.
Despatch date information is on request.
