CMAC 5030K, SKF, Laser tachometer kit (KIT, COMPACTTACH, LASER/CBL/TRIPOD)

Hardware, EAN code: 7316572146064

SKF Authorised distributor logo
Brand SKF
Mfr Part No. CMAC 5030K
Acorn Code CMAC5030K-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

United Kingdom (GB)

$3,780.98

+

The CMAC 5030K laser tachometer kit contains a small tachometer for easy mounting. Along with the tachometer, this kit includes a bracket for mounting the tachometer directly to the SKF Microlog using the camera mount
located on the bottom of the SKF Microlog. The kit also includes a two-meter cable to connect the tachometer to the SKF Microlog and a small tripod for a stationary mounting of the tachometer during the measurement.

The key features of this laser tachometer kit include:
• Operating frequency up to 250 000 r/min
• Long optical range, up to 2 m (6.56 ft.)
• Wide angle of operation, up to 80°
• On target indicator standard
• Protection rating: IP 67

Specifications:
• Material: Stainless steel body
• Color: Silver
• Laser type: Class 2
• Optical range: 100 to 2 000 mm (0.33 to 6.56 ft.)
• Power: 1 mW maximum
• Current consumption: 45 mA maximum
• Cable: Fischer seven pin type 103 to four pin socket, 2 m (6.56 ft.)
• Wavelength: 635 mm (25 in.)
• Angle of incidence: ±80°
• Speed range: 0,1 to 250 000 r/min
• Power input: 5 V DC or 8-24 V DC versions at 30 mA typically
• Operating temperature: -10 to +40 °C (15 to 105 °F)
• IP rating: IP 67
• Housing types: M20 threaded or plain body plus fixing slots
• Connections: Integral connector
• Dimensions: 70 × 20 mm (2.76 × 0.79 in.)
• Weight: 70 g (2.5 oz.)

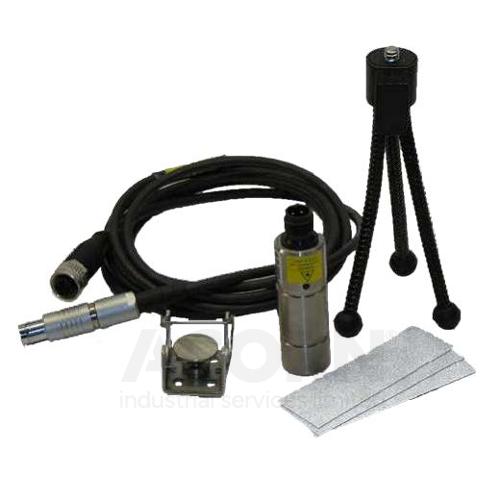

Kit contents:
• Compact laser tachometer
• Mounting bracket
• Reflective tape strips
• Mini mounting tripod
• CMAC 5214: Tachometer interface cable, 2 m (6.56 ft.)

Specification

Product Attributes
Manufacturer Product Code CMAC 5030K
Basic Product Description Laser tachometer kit (KIT,COMPACTTACH,LASER/CBL/TRIPOD)
UOM Kit
Weight (Kg) 0.3
Material Stainless Steel Body
IP Rating IP 67
Cable Length 2 Mtr
Product type Hardware
EAN 7316572146064
